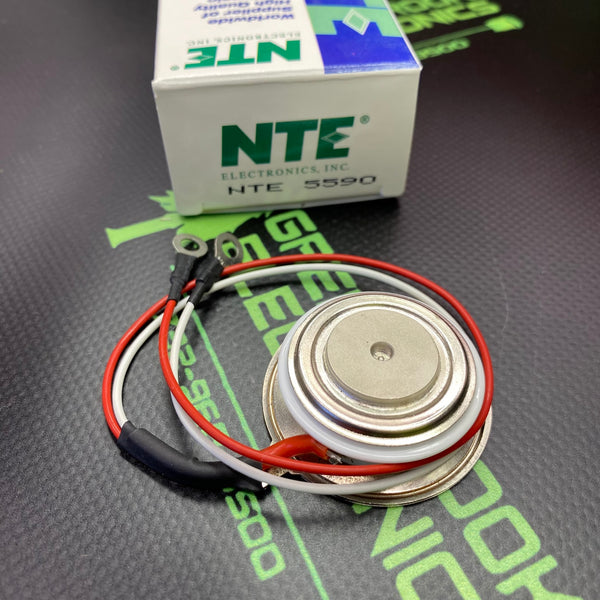

NTE5590

SCR-200VRM 350A TO-200AB HOCKEY PUCK IGT=150MA - Repetitive Peak Off-State Voltage (VDRM/VRRM): 200V
On-State RMS Current (IT(RMS)): 780A
Average On-State Current (IT(AV)): 470A (at Ths = +55°C, double side cooled)
Surge Current (ITSM): up to 5120A (at 60Hz)
Gate Trigger Current (IGT): 150mA maximum
Operating Temperature: -40°C to +125°C
Package Type: TO-200AB (A-PUK, "hockey-puck" style), chassis mount
