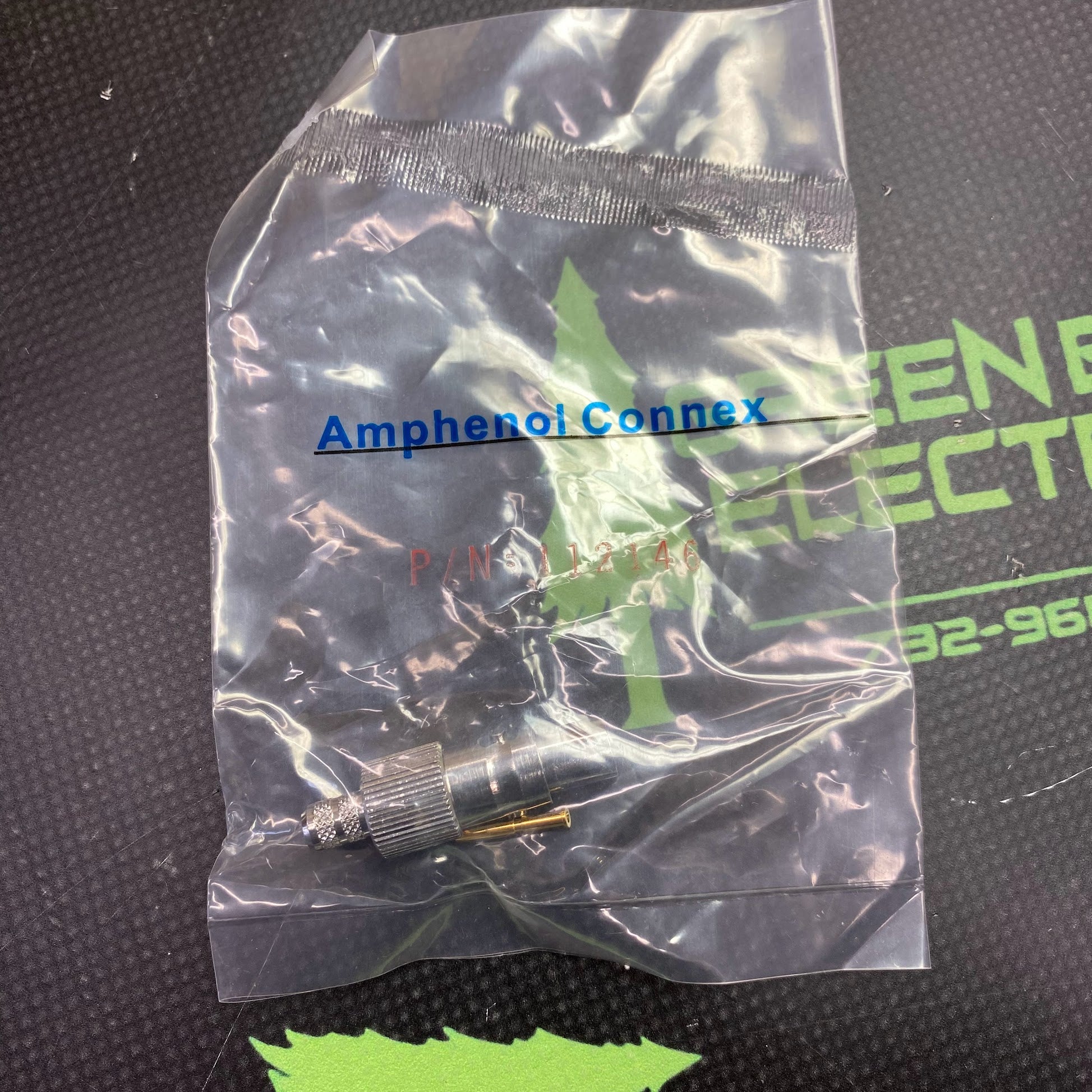

112146

AMPHENOL CONNEX BNC CRIMP JACK • BNC Jack (Female Socket)
• Impedance: 50 Ohms
• Maximum Frequency: 4 GHz
• Termination Style: Crimp
• Body Orientation: Straight
• Mounting Type: Free Hanging (In-Line) / Cable Mount
• Coupling Mechanism: Bayonet Lock for quick and secure mating
• Material & Plating: Brass body with Nickel finish; Phosphor Bronze contact with Gold plating; PTFE insulator
• Temperature Range: -65°C to +165°C
