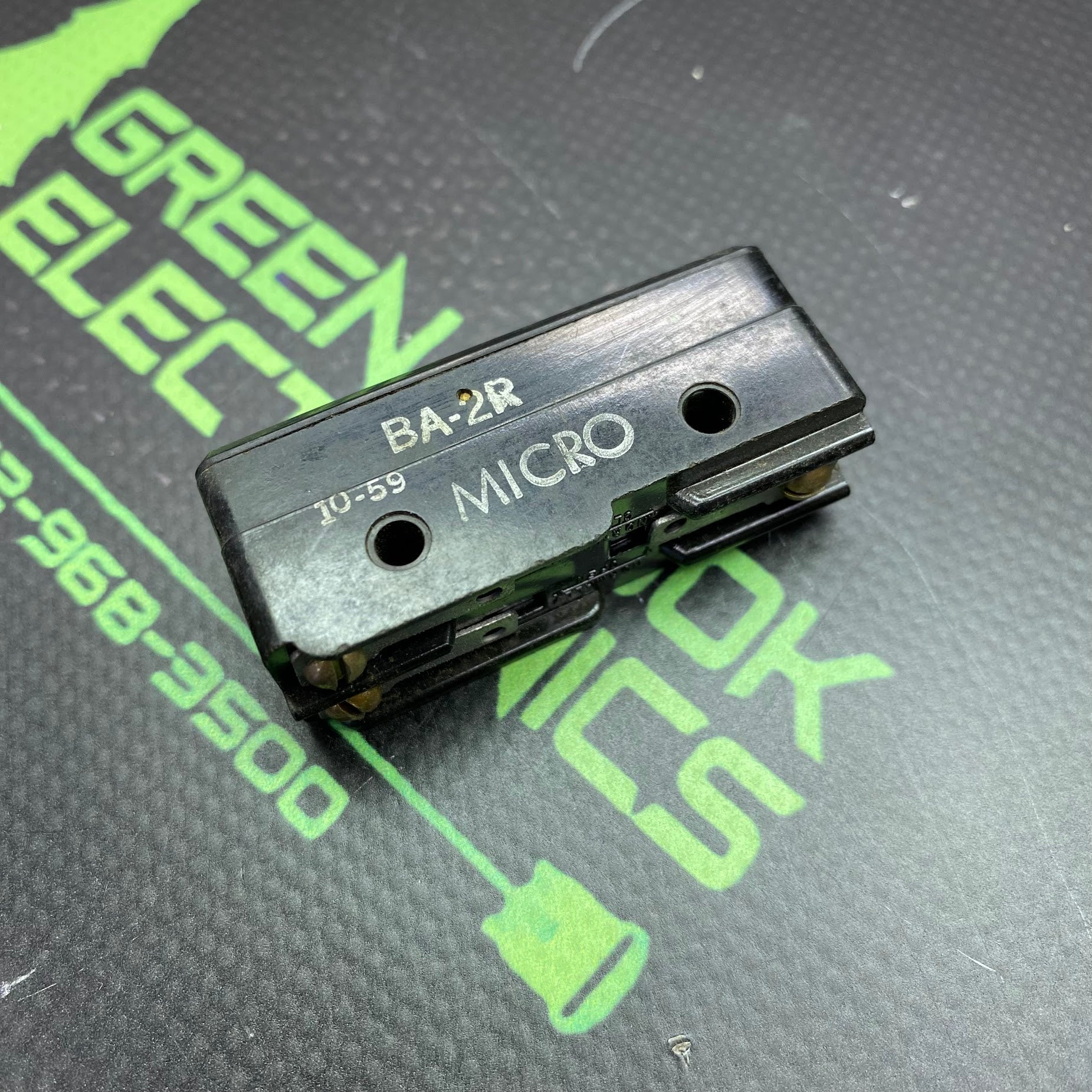

BA-2R

Premium, large Standard Basic Snap-Action Switch designed for high-precision industrial on/off applications. It features a Single-Pole Double-Throw (SPDT) contact configuration, tight differential travel, and a rugged phenolic housing.Technical SpecificationsContact Configuration: SPDT (Single-Pole Double-Throw).Current Rating: 20 A at 125, 250, or 480 VAC.Actuator Type: Pin Plunger.Termination Style: Screw terminals (utilizes bottom-facing #8 screws and cup washers).Operating Force: 14.0 oz to 22.0 oz (3.89 N to 6.12 N).Differential Travel: Extremely tight 0.0020 to 0.0075 inches (0.05 mm to 0.19 mm).Mechanical Lifespan: Up to 20,000,000 cycles at a 95% survival rate.Housing Material: Non-sealed Phenolic plastic.Temperature Range: -55°C to 85°C (-67°F to 185°F). 1959
