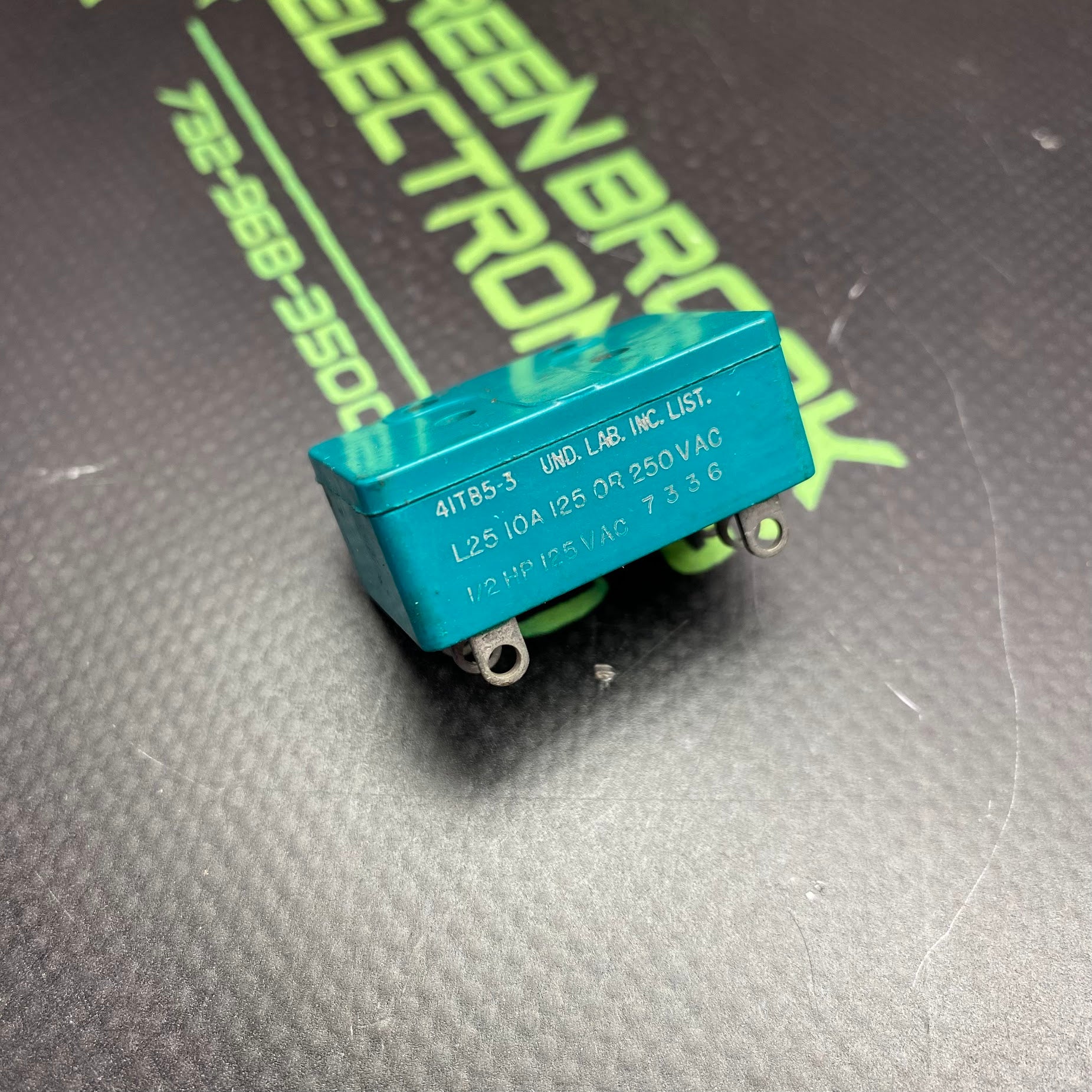

41TB5-3

Heavy-duty, large special application precision basic snap-action switch. It features a double-break design engineered to safely change the direction of high-current power across multiple circuit points simultaneously.Technical SpecificationsCircuitry: DPDT-DB (Double Pole Double Throw, Double Break) / 4-Circuit Double Break.Switch Function: On-Momentary (Spring return to resting position).Current Rating: 10 Amps.Voltage Rating: 125 VAC / 250 VAC.Motor Load Capacity: 373 Watts (1/2 Horsepower) at 125 VAC.Actuator Type: Pin Plunger.Termination Style: Solder Lug.Operating Temperature: Extreme range from -55°C to 204°C.Mechanical Life: Tested up to 7,000,000 cycles.Primary ApplicationsIndustrial Automation: Managing heavy machinery movements and safety limits.Process Control Instruments: Regulating industrial valves and fluid dynamics.Power Load Switching: Controlling electrical subsystems that require robust arc prevention via double-break contacts.
