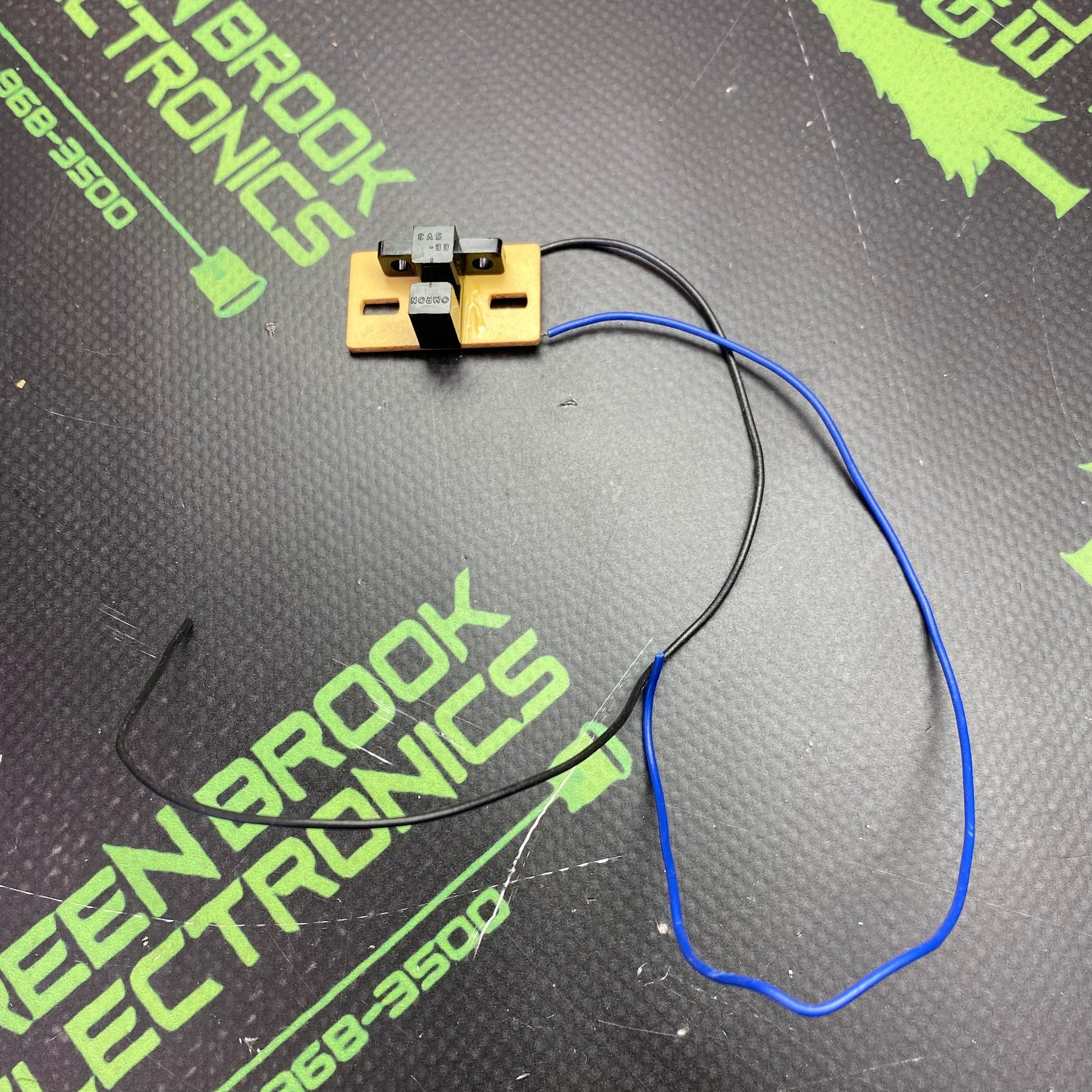

EE-SV3

Transmissive, slot-type photomicrosensor (often called an optical switch, photointerrupter, or photogate) designed for precise non-contact position sensing, object detection, and edge counting.Key Technical SpecificationsThe electrical and optical characteristics of the sensor include:Sensing Method: Through-beam / transmissive (an infrared LED faces a phototransistor across a gap).Slot Width (Gap): 3.4 mm.Aperture Width: 0.5 mm, allowing for high-resolution positioning.Output Type: Phototransistor.Maximum Collector-Emitter Voltage (\(V_{CEO}\)): 30 V.Maximum Forward Current (\(I_{F}\)): 50 mA.Maximum Collector Current (\(I_{C}\)): 20 mA.Operating Temperature: -25°C to 85°C.
