42IF129

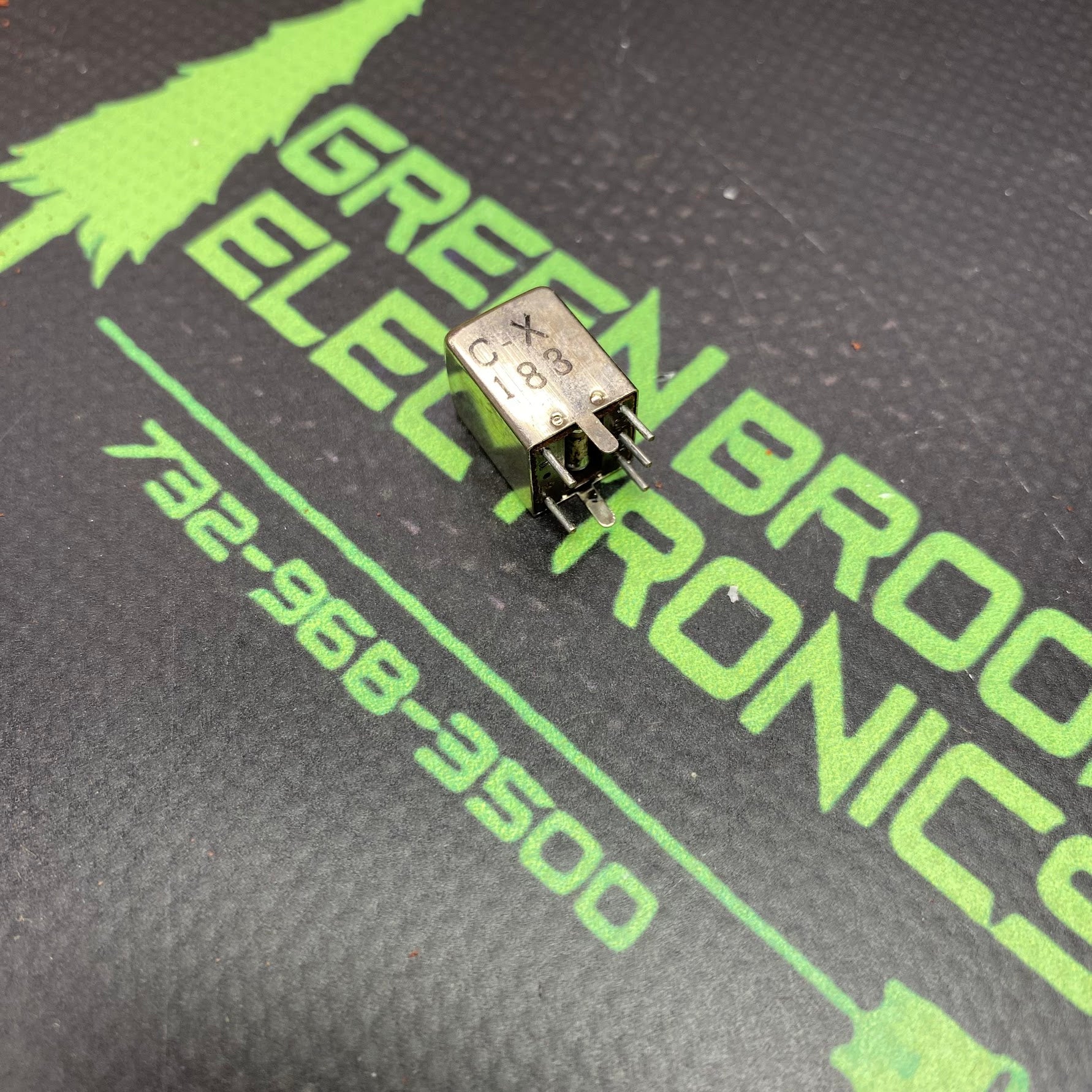

IF TRANSFORMER C-X183 - IMPEDENCE 15KOHM PRIMARY - 100OHM SECONDARY - 7.4UF INDUCTANCE - 30PF CAPACITANCE sub-miniature Intermediate Frequency (IF) transformer manufactured by Xicon Passive Components. It is specifically designed for radio frequency circuits operating at a center frequency of 10.7 MHz, commonly used in the 2nd and 3rd IF stages of FM radio receivers.Core Technical SpecificationsCenter Frequency: 10.7 MHz (± 3%)Primary Impedance: 15k ΩSecondary Impedance: 100 ΩInductance: 7.4 μHInternal Tuning Capacitance: 30 pFUnloaded Q Value: 100 (± 20%)Color Code: Black tuning slug/shieldMounting Style: Through-hole Printed Circuit (PC) mount
