FBH36TE100R2

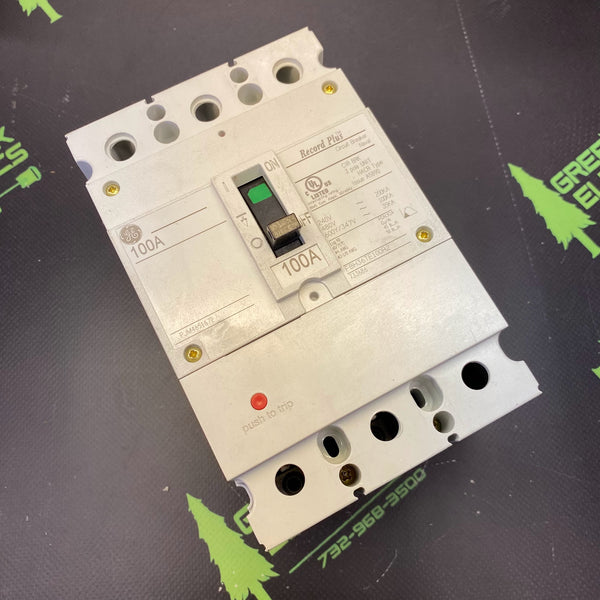

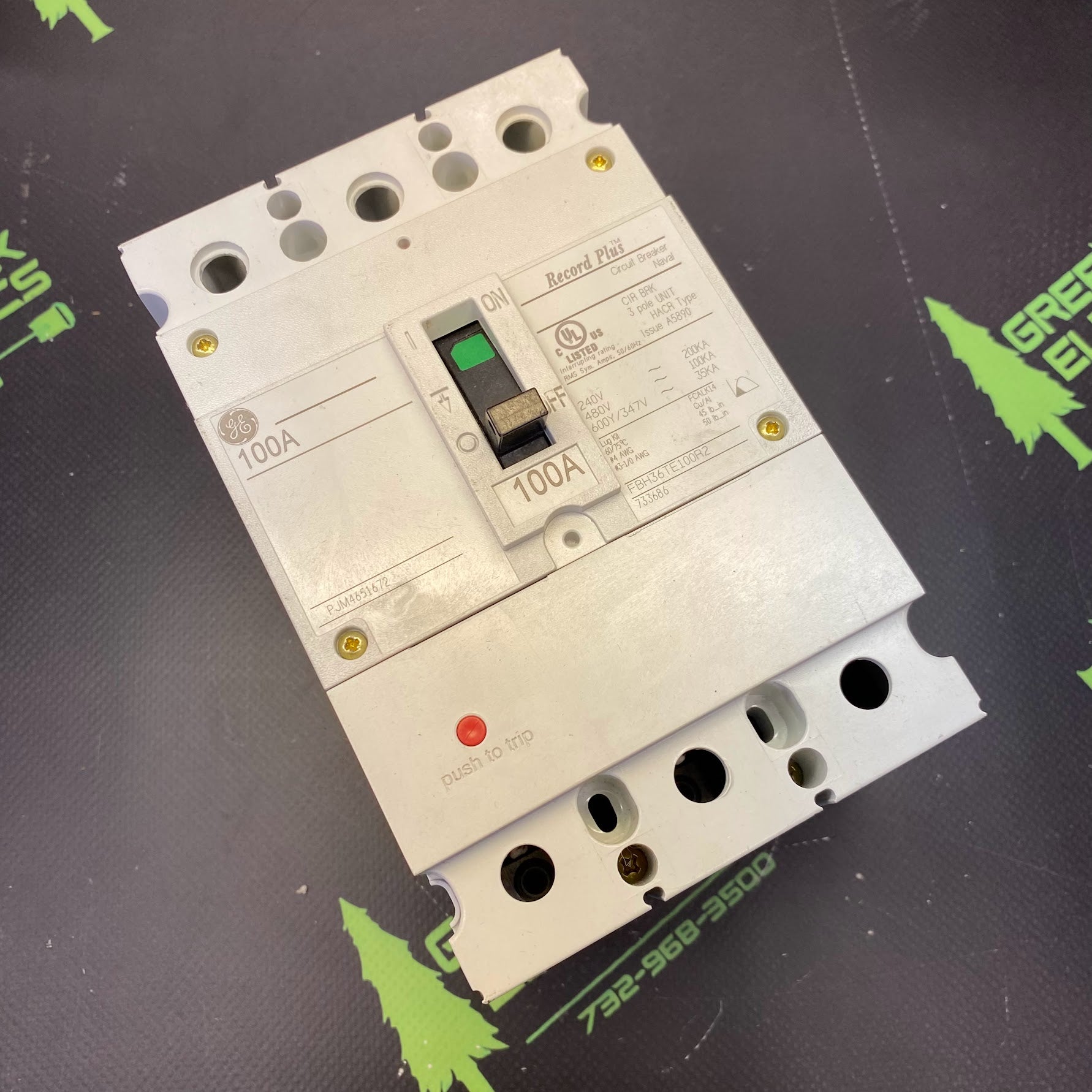

100A CIRCUIT BREAKER - NEW - The GE FBH36TE100R2 is a 3-pole, 100-amp molded case circuit breaker (MCCB) from the high-interrupting Record Plus™ series. It is engineered for industrial and commercial electrical systems. It features a thermal-magnetic trip unit and is rated for up to 600V AC.🛠️ Technical SpecificationsManufacturer: General Electric (GE) / ABBFrame Type: FB100 Frame (Record Plus™ Series)Number of Poles: 3-PoleAmperage Rating: 100 AmpsVoltage Rating: 600Y/347 V ACInterrupting Rating (AIC): High-capacity protection:100 kA at 480V AC200 kA at 240V ACTrip Unit Type: Non-interchangeable Thermal-MagneticTerminal Connection: Load lugs included (signified by the R2 suffix code).🔍 Key Part Number BreakdownFBH: High interrupting capacity Record Plus™ FB frame style.3: Indicates a 3-pole unit.6: Rated for 600V applications.TE: Factory-installed thermal-magnetic trip unit.100: 100-amp continuous current rating.R2: Supplied with load-side lugs only (line-side lugs or hardware must be sourced separately if needed).
