1-480424-0

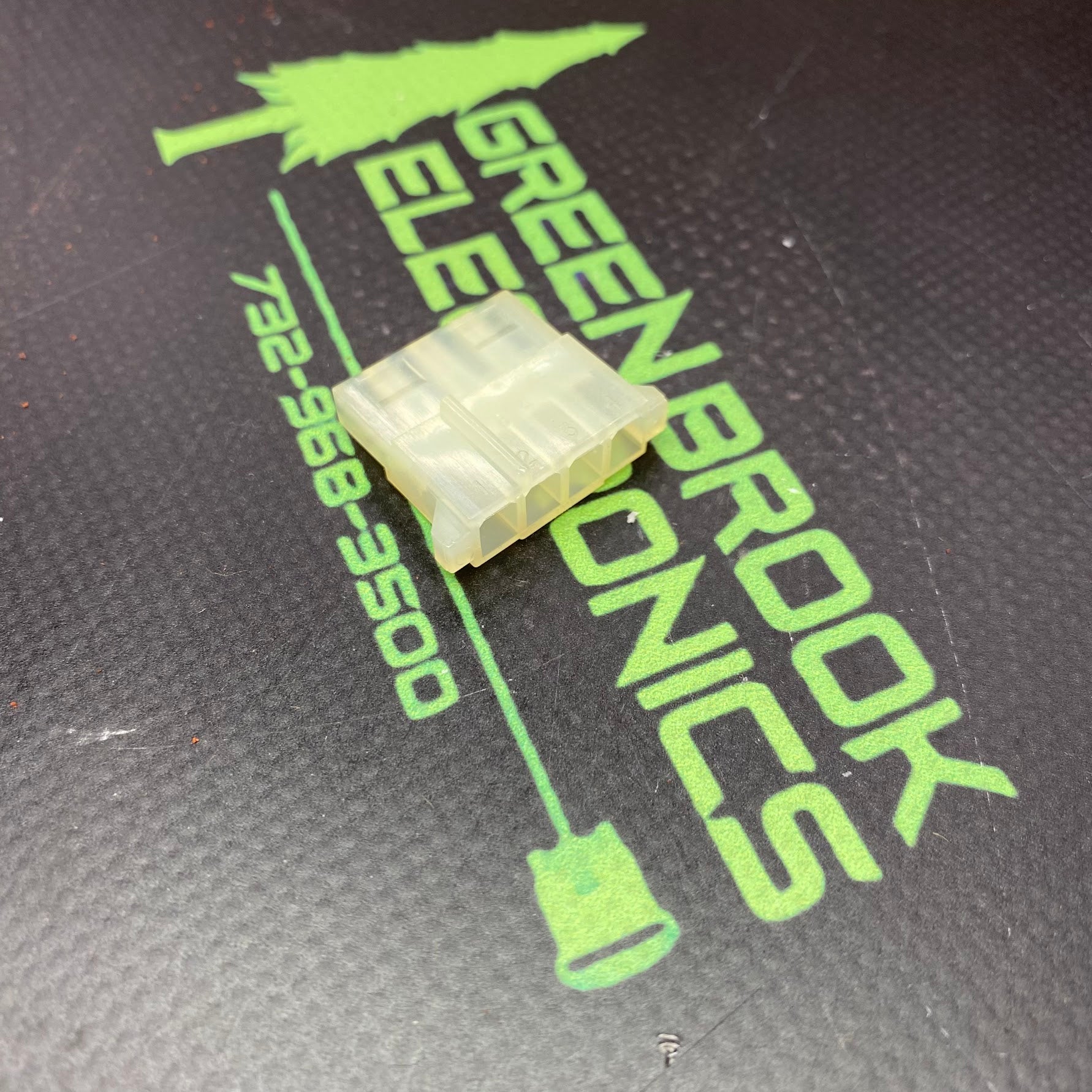

10PC BOX 4CIRCUIT The AMP 1-480424-0 is a 4-position, single-row rectangular plug housing manufactured by TE Connectivity. It belongs to the widely used Commercial MATE-N-LOK series. This housing is designed for reliable wire-to-wire or wire-to-board power and signal electrical connections.Technical SpecificationsSeries: Commercial MATE-N-LOKNumber of Positions: 4 positions arranged in a 1x4 single row layoutPitch Spacing: 5.08 mm (0.2 in) centerlineGender: Plug housing (typically accepts socket contacts)Mounting Type: Cable mount or free-hangingTermination Method: Crimp terminal contactsHousing Material: Natural-colored Nylon (Polyamide) with a UL 94V-2 flammability ratingElectrical Ratings: Supports a maximum voltage of 250 VAC and a maximum current of 13 A per contactOperating Temperature: Wide operational range from -55°C to 105°CKey Features: Features built-in polarization to prevent mismatching and an integrated detent locking mechanism to safeguard against accidental disconnection.
