28S2022-0M0

28S2022-0M0

LAIRD

*Prices in retail store may differ from online store

Shipping calculated at checkout.

Units in stock: 2
(STOCK IN MULTIPLE LOCATIONS)

Request Quote

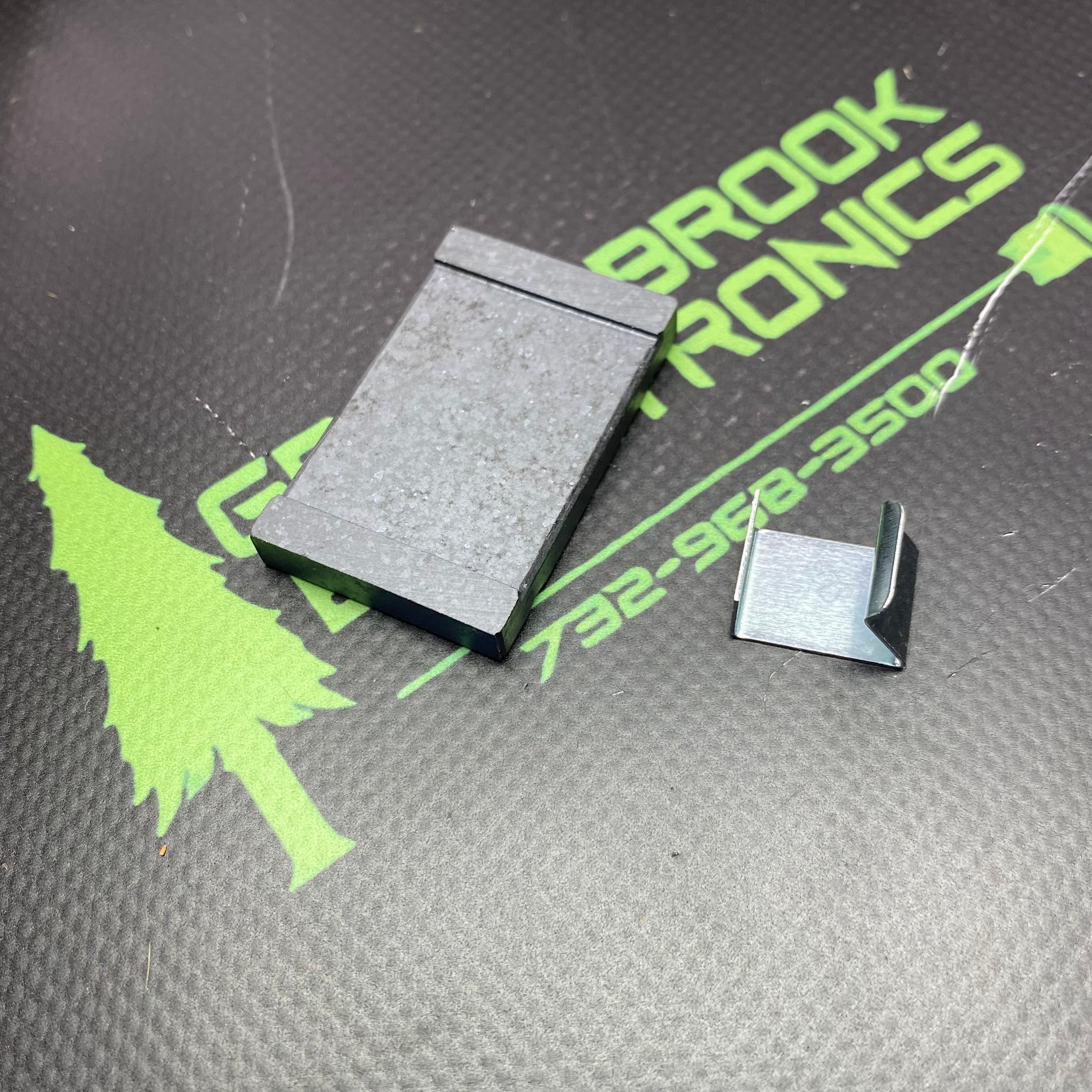

EMI split ribbon ferrite cable core manufactured by Laird Performance Materials. It is specifically designed to suppress electromagnetic interference (EMI) and high-frequency noise on flat ribbon or flex cables - Function: Broadband EMI suppression filtering (30 MHz - 500 MHz).Impedance: 250 Ohms at 100 MHz.Design Type: Split core with a metal clip assembly for secure post-assembly installation.Physical Mounting: Free hanging or clip-together placement.Critical Installation NoteSold as Single Sides: This part number represents one half of the split core assembly.Ordering Rule: You must order 2 units to form a complete, functional set around your ribbon cable.Physical DimensionsInside Slot Width: 1.355 inches (34.42 mm)Inside Slot Height: 0.033 inches (0.84 mm)Total Length: 1.125 inches (28.58 mm)Maximum Ribbon Cable Thickness: Suitable for flex or ribbon profiles under 0.027 inches (0.69 mm).
