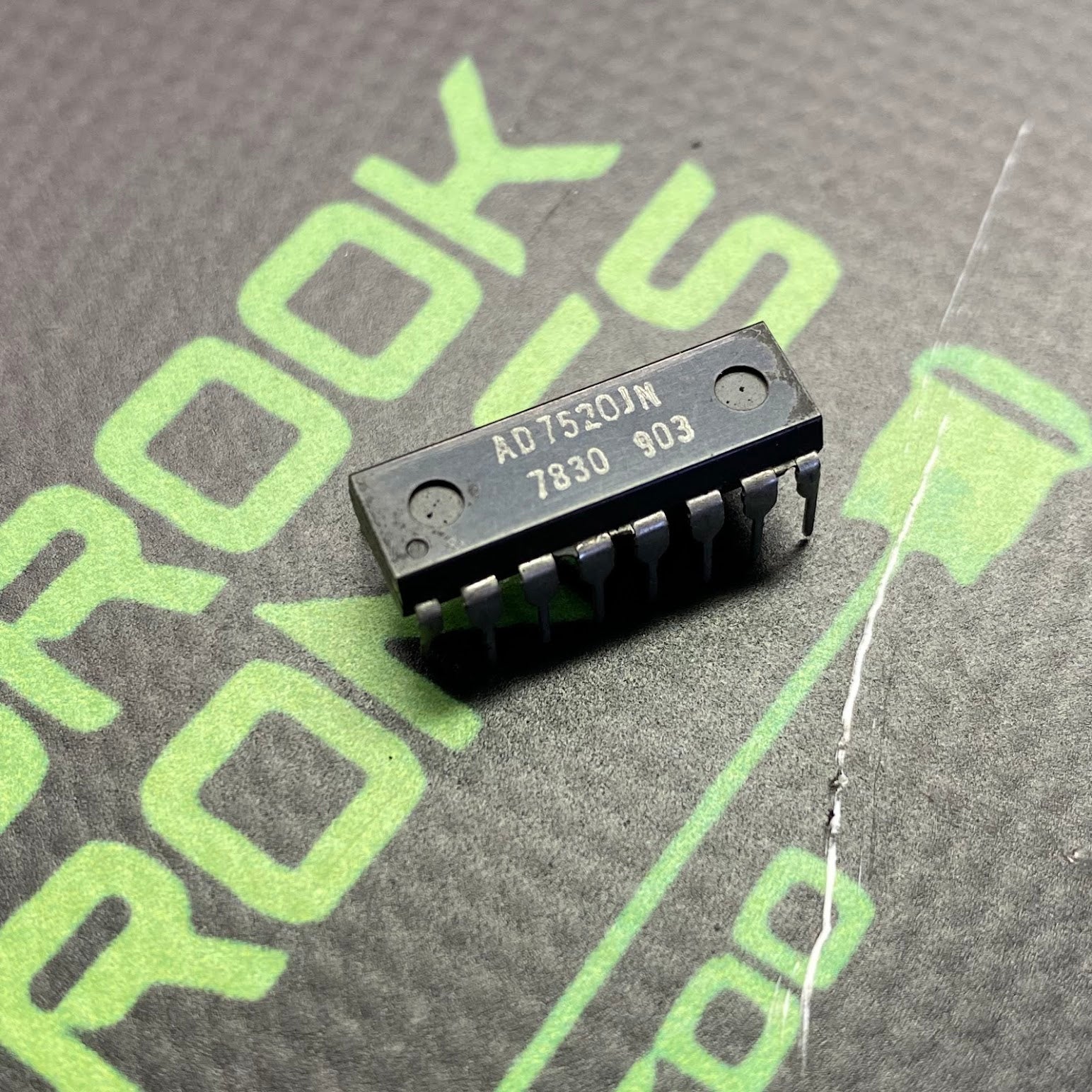

AD7520JN

Monolithic 10-bit multiplying digital-to-analog converter (DAC). Manufactured using a combination of advanced CMOS and thin-film technologies, it provides 10-bit accuracy with full TTL, DTL, and CMOS logic compatibility. It is a highly enduring, legacy component housed in a 16-pin plastic Dual In-line Package (DIP-16) Resolution: 10-BitSettling Time: 1.0 µs to 0.05% of Full Scale Range (FSR)Power Dissipation: Ultra-low 20 mW maximumSupply Voltage Range: +5V to +15VLinearity: Offers up to 10-bit linearity depending on grade (the "J" suffix traditionally indicates the standard commercial temperature range and matching baseline linearity). Because this is a multiplying DAC, the output current is the product of the digital input code and an analog reference voltage, which can vary. This makes it uniquely suited for:Digitally controlled gain, attenuation, and volume circuitsDigital/analog multiplication and division systemsCRT character and X-Y graphics generationDigitally programmable power supplies
