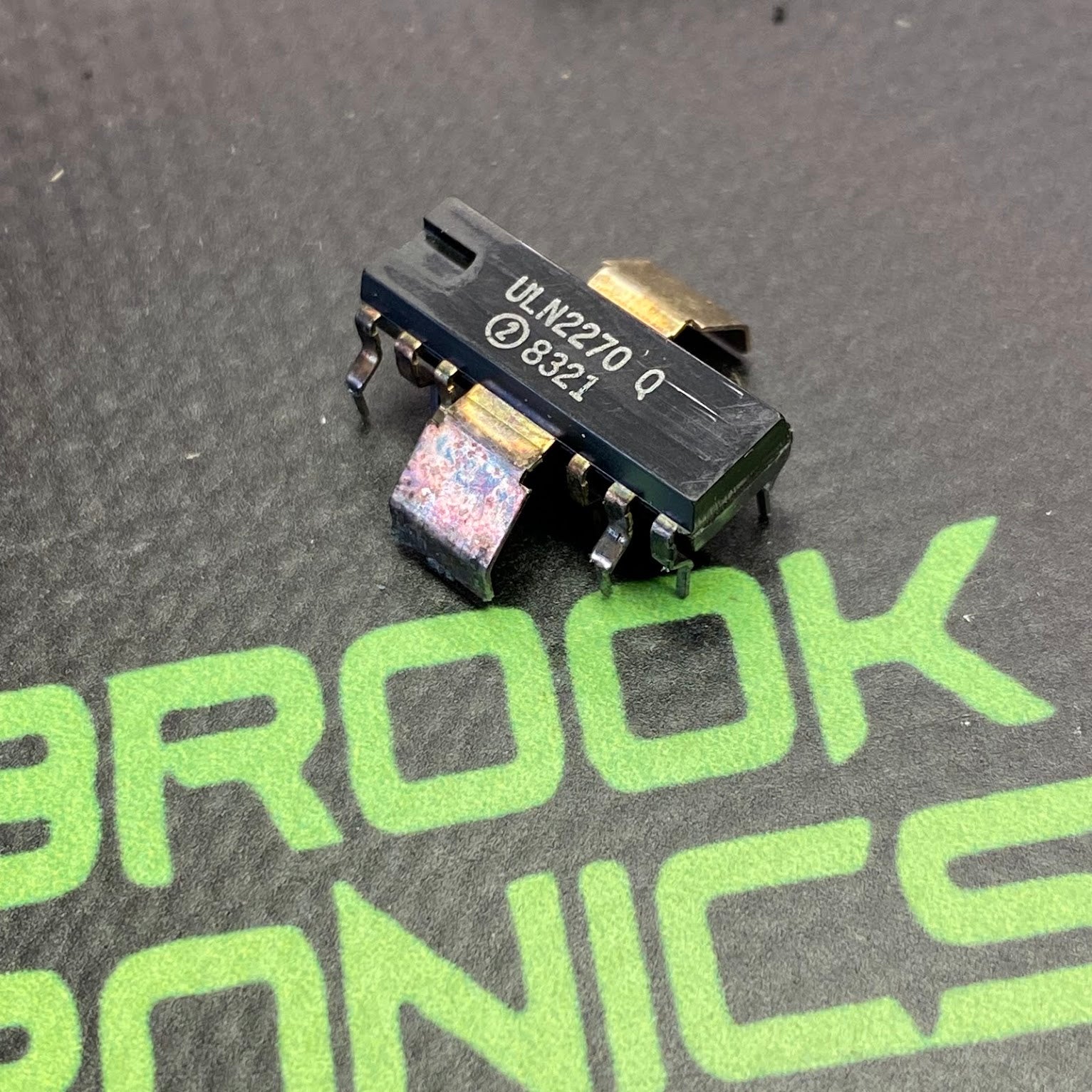

ULN2270Q

Legacy bipolar integrated circuit (IC) designed specifically as a TV vertical deflection system/power amplifier booster. Originally manufactured by electronics companies like Sprague and Allegro MicroSystems, this linear microcircuit was widely used in older cathode-ray tube (CRT) televisions, video arcade monitors, and classic test equipment (such as vintage Tektronix logic analyzers) to control the vertical electron beam alignment.Key Specifications & ArchitecturePrimary Function: It acts as a full-bridge, current-driven vertical deflection booster and power amplifier.Silicon Technology: Built using a bipolar semiconductor process.Package Style: Typically housed in a PQIP16 (Plastic Quad Inline Package with 16 pins) or a specialized 12-pin DIP with a heatsink tab molded into a 16-DIP outline. This tab configuration allows the IC to dissipate the significant thermal heat generated while driving the deflection yoke coils.Common Industry Cross-ReferencesBecause this component is largely obsolete, finding direct replacements involves looking up vintage semiconductor cross-reference indexes:Direct Equivalent: TDA1170 (often cited as the primary functional cross-reference match).Alternative Cross: NTE7147 (a common aftermarket replacement semiconductor line item used by repair technicians)
