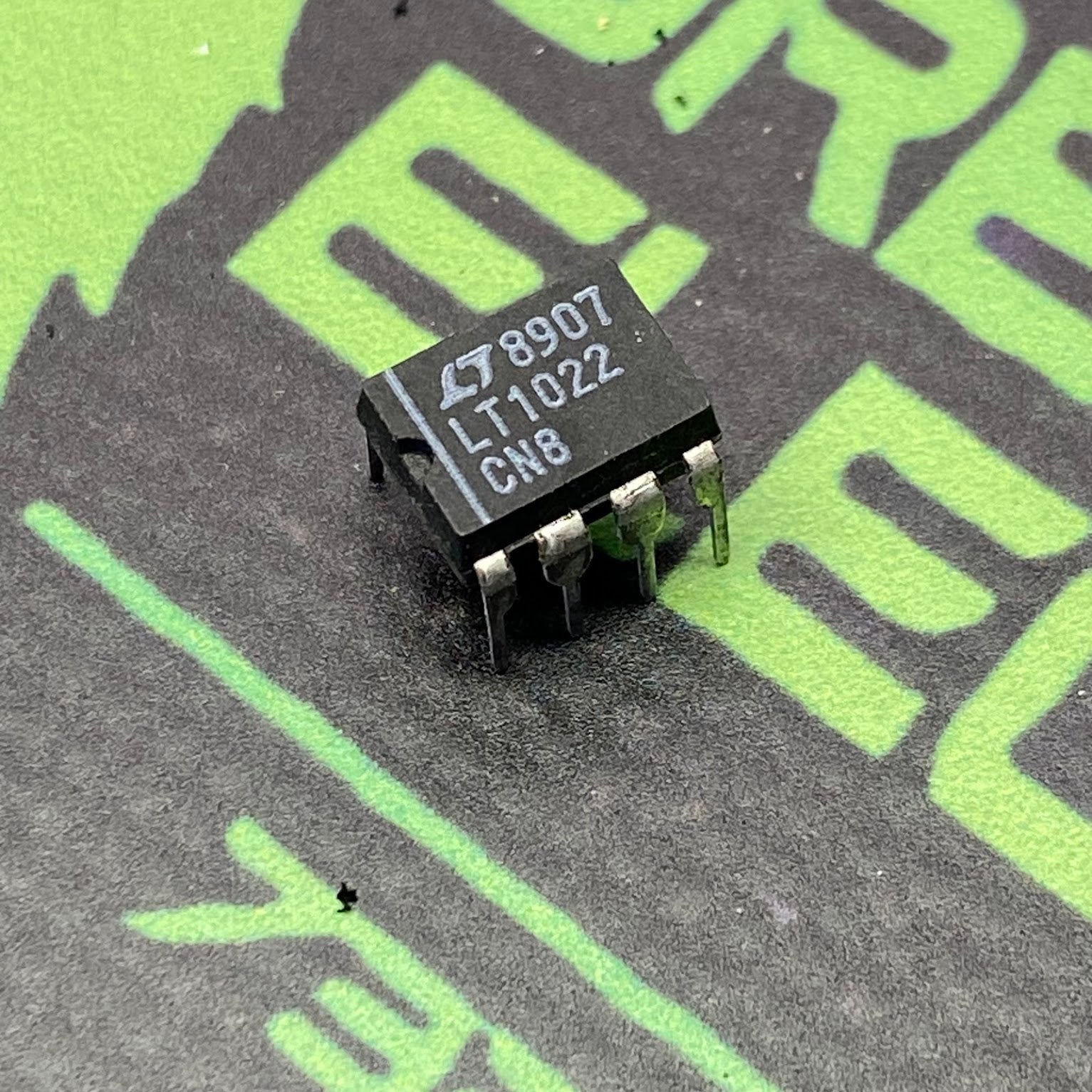

LTC1022CN8

High-Speed, Precision JFET Input Operational Amplifier originally manufactured by Linear Technology (now part of Analog Devices). It is housed in an 8-lead plastic dual in-line package (PDIP) and engineered to merge fast switching speeds with high precision, making it an excellent fit for demanding analog circuits.Core Technical SpecificationsThe operational amplifier delivers a reliable balance of speed, low noise, and minimal signal error:Slew Rate: 26 V/µs (Guaranteed minimum of 23 V/µs)Gain-Bandwidth Product (GBP): 8.5 MHz typicalOperating Supply Voltage: Range of ±10 V to ±18 VInput Offset Voltage: 160 µV typical, with a guaranteed maximum of 250 µV at room temperatureInput Bias Current: 50 pA typical (fully warmed up)Output Current Drive: Can deliver up to 20 mA of load current without sacrificing gain performanceSettling Time: Approximately 0.9 µs to 1.5 µs for a 10V step down to 0.05%Pin Configuration (8-Lead PDIP)The pinout utilizes a standard operational amplifier arrangement with dedicated offset nulling (balance) pins:BAL (Offset Null/Balance)-IN (Inverting Input)+IN (Non-Inverting Input)V- (Negative Supply Rail)BAL (Offset Null/Balance)OUT (Amplifier Output)V+ (Positive Supply Rail)N/C (No Internal Connection)Key ApplicationsThanks to its fast settling time and negligible DC errors, this component excels in systems requiring rapid, highly accurate signal conditioning:D/A Output Amplifiers: Serves as a high-speed buffer for 12-bit to 16-bit digital-to-analog converters.Sample-and-Hold Circuits: Provides the quick response time needed to accurately capture volatile analog signals.High-Speed Instrumentation: Functions efficiently in precision data acquisition systems and logarithmic amplifiers.Voltage-to-Frequency Converters: Stabilizes linear signal modulation systems.
