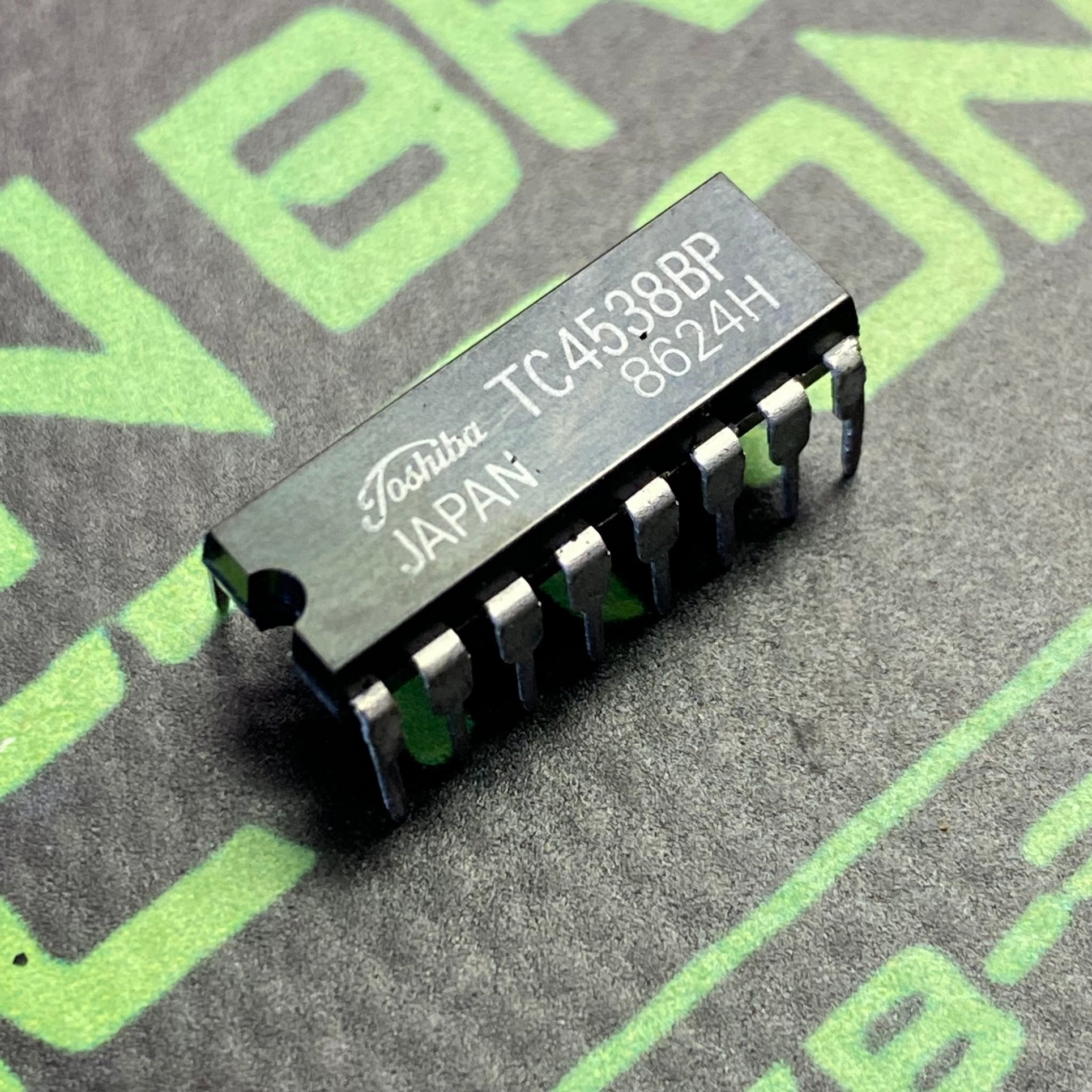

TC4538BP

High-speed CMOS Dual Precision Retriggerable/Resettable Monostable Multivibrator integrated circuit. It is a general-purpose logic IC widely used in timing circuits, pulse generation, and delay mechanisms.Core Technical SpecificationsLogic Function: Dual Monostable Multivibrator (contains two independent timing circuits).Package Type: 16-pin PDIP (Plastic Dual In-line Package).Operating Voltage Range: 3V to 18V.Trigger Methods: Leading-edge (positive-going) or trailing-edge (negative-going) triggers via two inputs, A and B.Output Pulse Width: Broad adjustable range determined by an external resistor (\(R_{X}\)) and capacitor (\(C_{X}\)).Standard Pulse Accuracy: Typically 10 ms ± 5% when configured with \(R_X = 100\text{ k}\Omega\) and \(C_X = 0.1\ \mu\text{F}\) at a supply voltage of 10V.Key FeaturesRetriggerable Option: The output pulse can be extended indefinitely by applying a new trigger pulse before the current output interval expires.Resettable Control: Includes a reset input (\(C_{D}\)) that can immediately terminate the output pulse regardless of timing state.True and Complementary Outputs: Provides both buffered Q (active-high) and Q̄ (active-low) outputs
