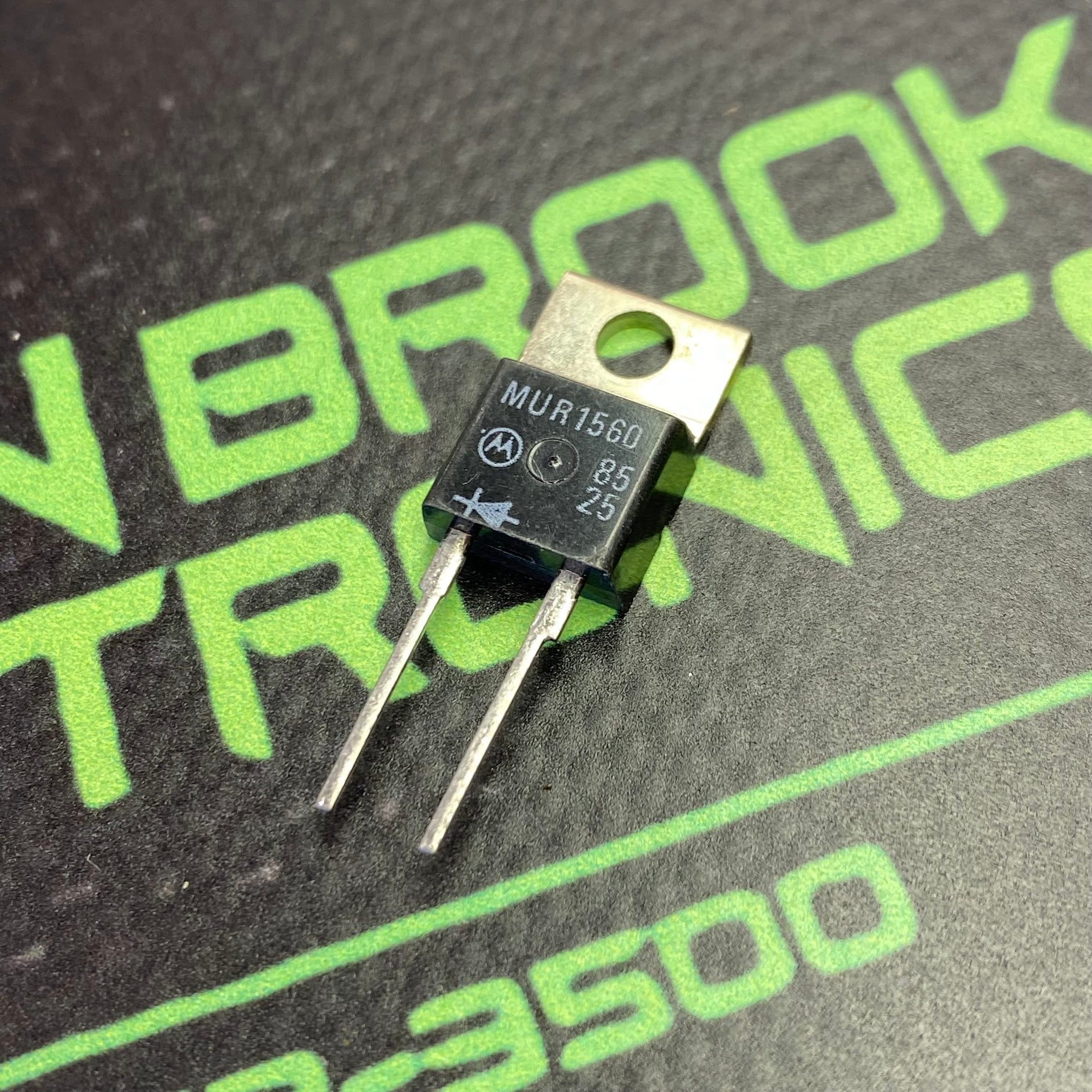

MUR1560

Ultrafast recovery power rectifier diode designed for high-frequency switching and power conversion applications. Its part number indicates its core capabilities: it supports a 15A continuous forward current and handles a maximum repetitive reverse voltage of 600V. Packaged primarily in a through-hole TO-220AC housing (featuring two functional pins), it is standard hardware for preventing power loss and ensuring high reliability in stressful electrical environments - Continuous Forward Current (\(I_{F(AV)}\)): 15 APeak Repetitive Reverse Voltage (\(V_{RRM}\)): 600 VMax Forward Voltage Drop (\(V_{F}\)): ~1.5V to 1.7V at full 15A current load (25°C)Reverse Recovery Time (\(t_{rr}\)): Ultrafast switching speed, typically under 50ns to 60ns.Peak Forward Surge Current (\(I_{FSM}\)): Can survive momentary single-pulse surges up to 150A–250A depending on the manufacturer.Operating Junction Temperature (\(T_{J}\)): Rated safely up to 150°C or 175°C.
