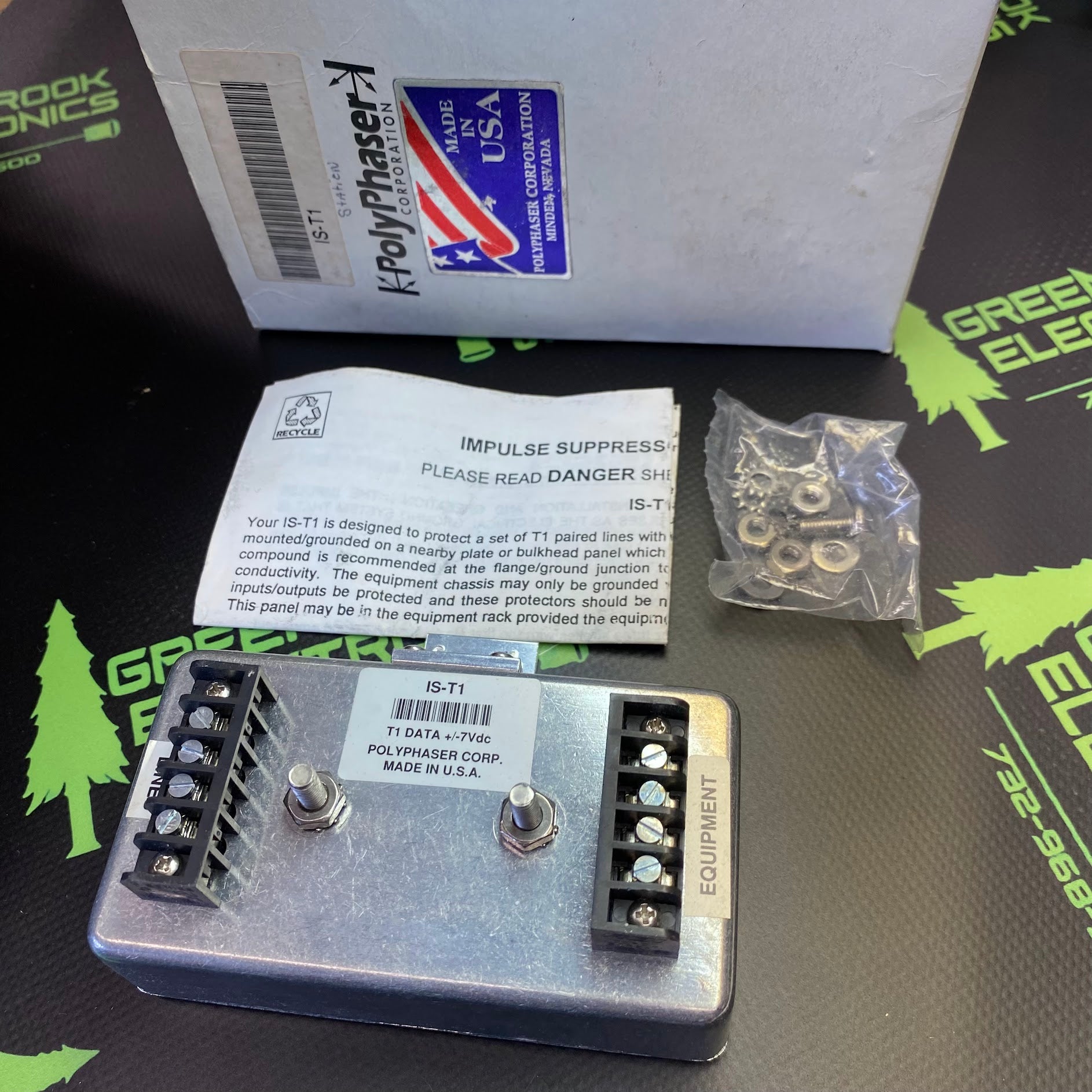

IS-T1

High-performance, multi-stage lightning surge protector designed to shield sensitive T1 data lines, telephone trunk lines, and high-speed data hardware from damaging electromagnetic pulses (EMP) and electrical transients. It operates transparently on data networks while offering heavy-duty shunt protection against high-surge currents up to 36kA - Surge Capability: 36kA maximum based on the ANSI C62.1 8/20 waveform.Turn-On Voltage: ±7Vdc ±20% tolerance.Let-Through Voltage: 17Vp.Line Resistance: 1 Ω.Capacitance: 30pF.Surge Energy Rating: 425 Joules.Bandwidth: Up to 120MHz
