170-00016-006

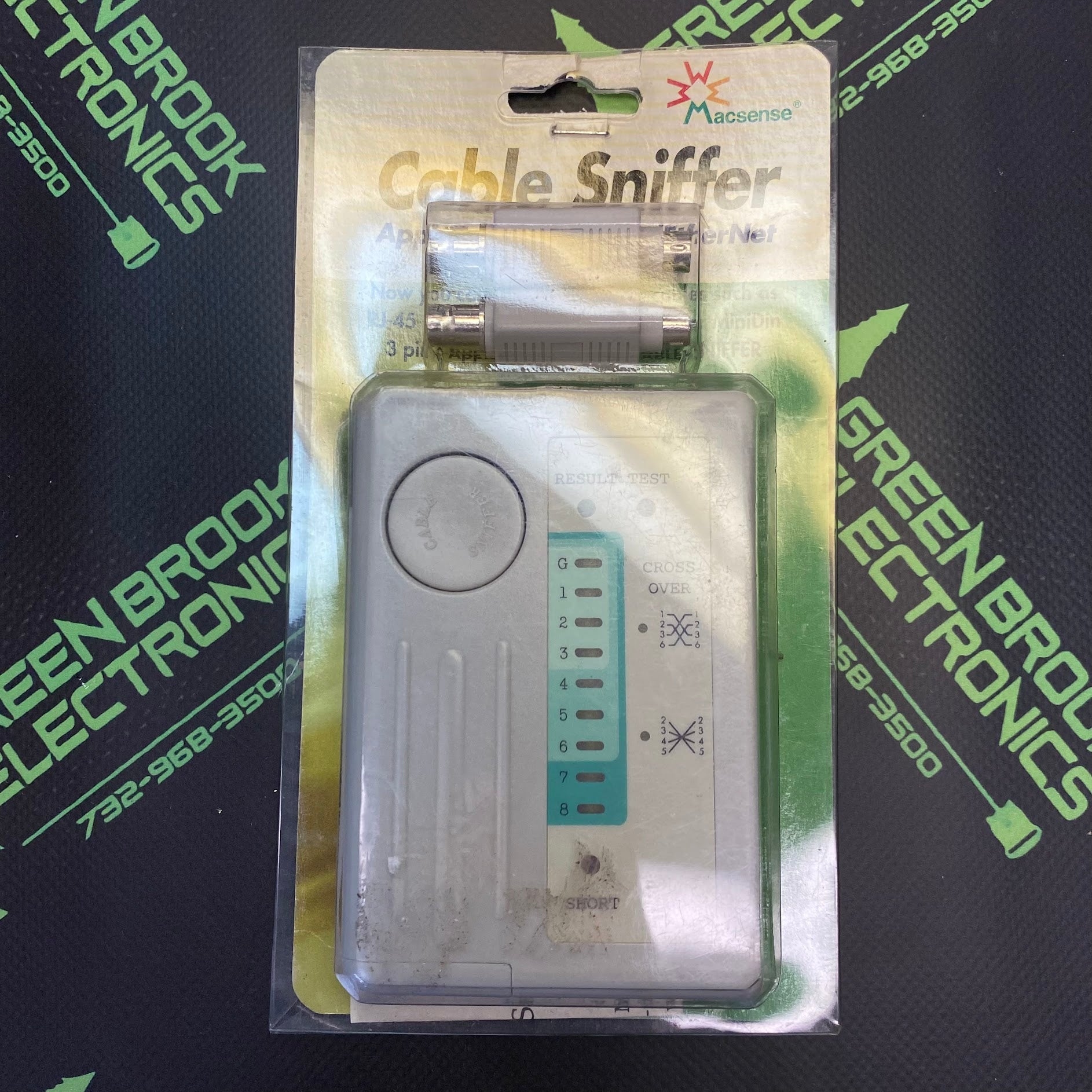

APPLE CABLE SNIFFER - APPLE TALK - PHONENET - ETHERNET The MacSense 170-00016-006 (often branded under their "Fastnet" line) is a vintage PhoneNET-style LocalTalk adapter used to network classic Macintosh computers and printers from the late 1980s through the 1990s.The term "Apple Cable Sniffer" is a colloquial or descriptive retail term historically used by surplus sellers or technicians to describe these pocket-sized diagnostic/networking transceivers because they plug directly into Apple's proprietary serial ports to bridge them over to common wiring standards.🔍 How It Works & Hardware SpecificationsThe Connection: It features an 8-pin Mini-DIN male connector (attached to a short pigtail cable) that plugs directly into the Printer Port of a classic Mac.The Ports: The plastic block housing contains one or two RJ-11 telephone jacks.The Technology: It utilizes AppleTalk (the network protocol) running over the LocalTalk physical layer.💡 Clearing Up the "Ethernet" MisconceptionWhile these adapters are frequently lumped into search keywords alongside "Ethernet," this adapter does not support or convert to Ethernet.PhoneNET vs. Ethernet: This adapter relies on standard 4-conductor RJ-11 telephone cords to run LocalTalk at its native speed of 230.4 Kbps. It is entirely incompatible with RJ-45 Ethernet cables, which run at 10 Mbps or higher.How to bridge to Ethernet: To connect a Mac using this MacSense adapter to a modern Ethernet network, you must route the phone-line chain into a hardware bridge, such as an AsantéTalk, Farallon iPrint, or a Cayman GatorBox.🛠️ Configuration & Deployment RulesThe Target Port: You must plug the 8-pin connector into the Printer Port, not the Modem Port. LocalTalk defaults to the printer port out of the box.Daisy-Chaining: You link multiple Macs together in a straight line (daisy-chain) by running phone cords from one adapter's RJ-11 jack to the next adapter.Termination: If your MacSense adapter is at the very beginning or the absolute end of the chain, you must insert an RJ-11 terminating resistor (usually 120-ohm) into the empty second jack, or the network signal will reflect and fail.Software Setup: In the classic Mac OS, open the AppleTalk Control Panel (or Network Control Panel on older systems) and ensure the connection is set to "Printer Port" or "LocalTalk" rather than "EtherTalk"
