TB4M

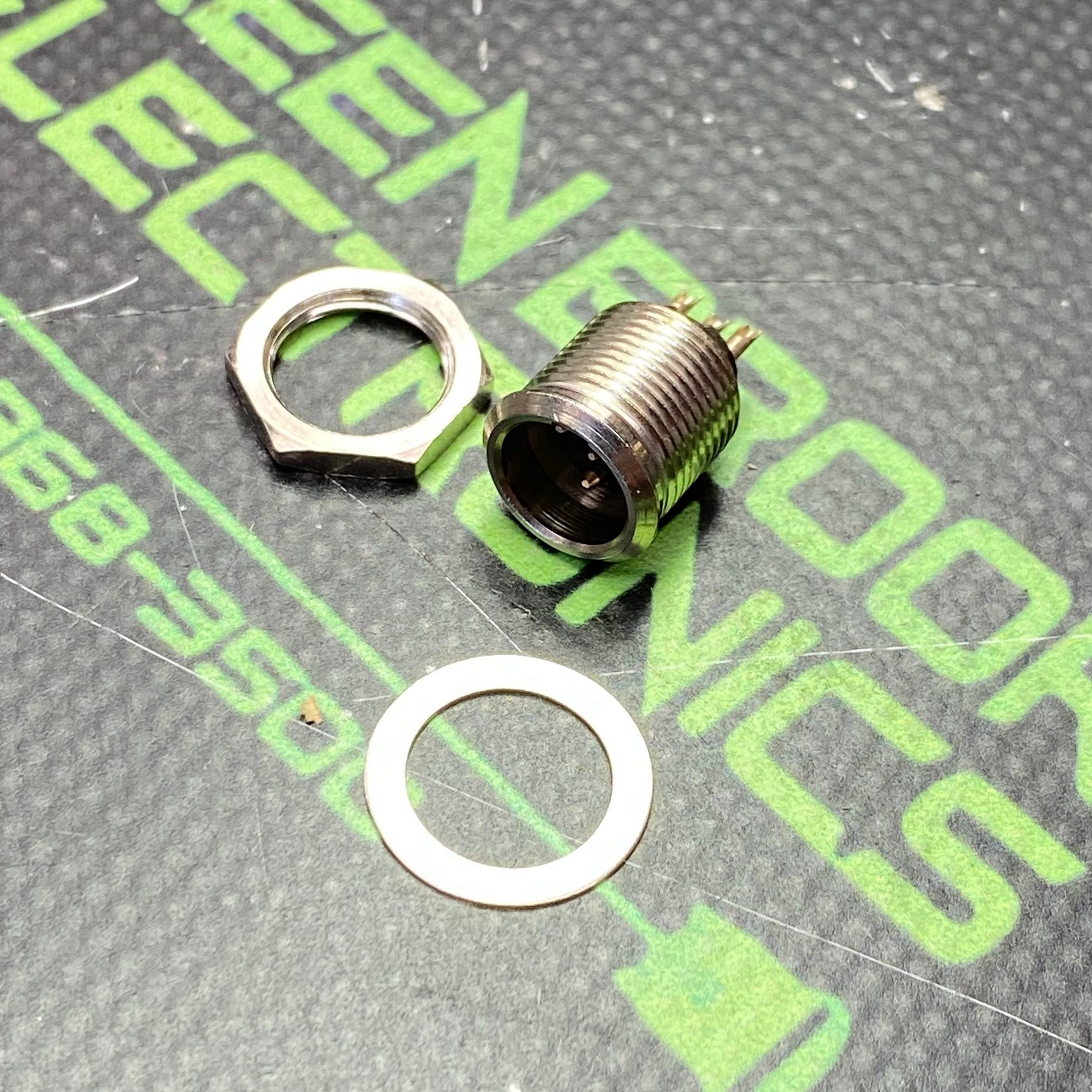

4pin male Tini-QG "Mini XLR" circular panel-mount connector designed for high-density, space-constrained professional audio applications. It is widely trusted for its durable, streamlined construction and low-profile form factor - Contact Configuration: 4 positions / pinsGender: Male plug / receptacleMounting Type: Panel / chassis mount with rear locknut and washerHousing Material: Die-cast copper alloy with a sleek nickel-plated finishContact Plating: Silver-plated copper alloyTermination Style: Solder cups (compatible with wire sizes up to 28 AWG stranded)Electrical Ratings: 5 Amps maximum current rating; 125 VAC maximum voltage ratingInsulation Resistance: 510,000 MΩ minimumDurability: Engineered for up to 2,000 mating cycles
