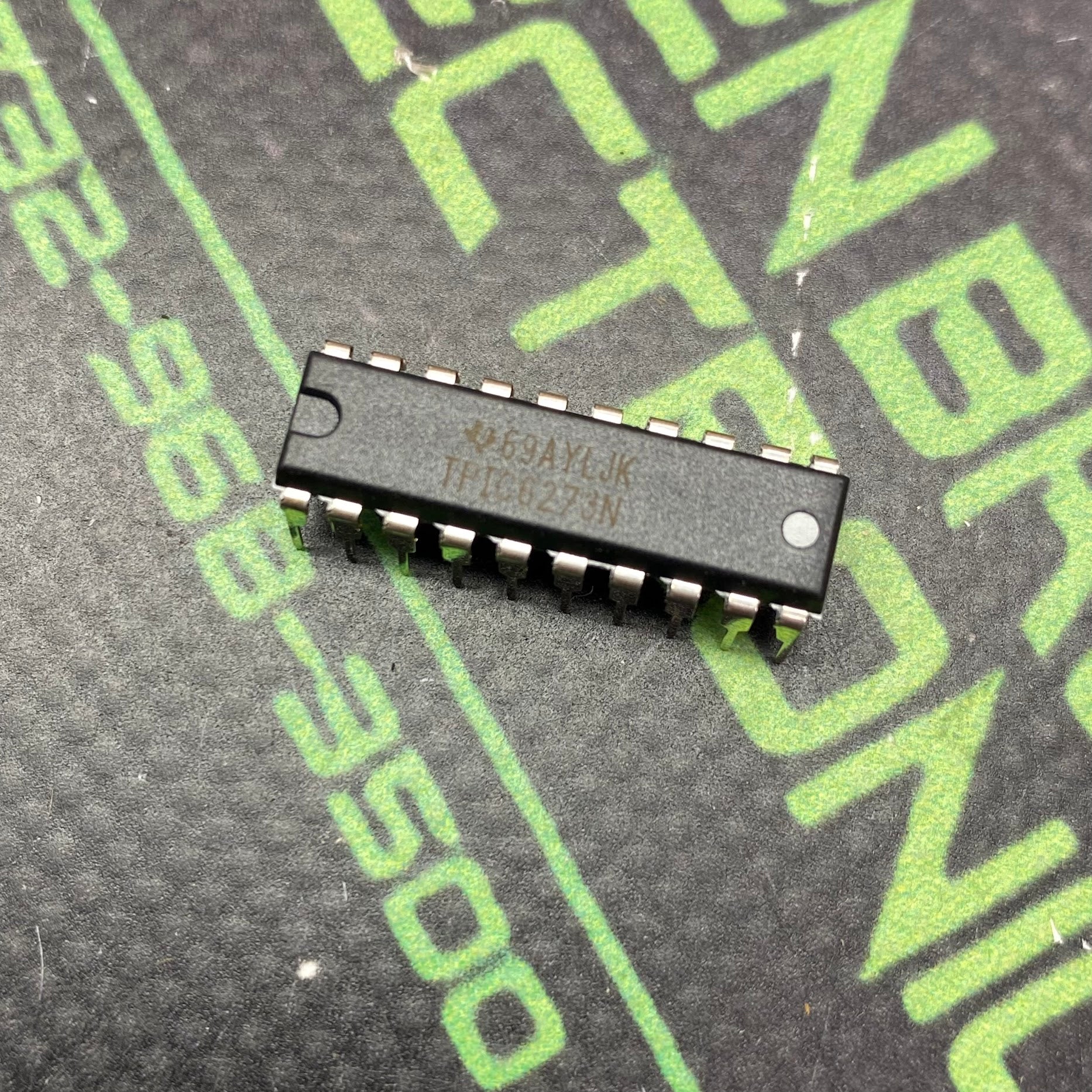

TPIC6273N

Power Logic Octal D-type Latch produced by Texas Instruments. It is a monolithic high-voltage, high-current device featuring eight power DMOS transistor outputs, designed specifically to drive high-load power in systems like relays and solenoids - Logic Type: Positive-edge-triggered Octal D-type flip-flop with a direct clear input.
Output Channels: 8 open-drain DMOS transistor outputs.
Current Capability: 250 mA continuous current per output; up to 1.5 A pulsed current.
Voltage Rating: Output clamp voltage up to 45 V to protect against inductive transients.
Supply Voltage: 4.5 V to 5.5 V for logic.
Package: 20-pin Plastic Dual In-line Package (PDIP).
Operating Temperature: -40°C to 125°C
