B22-254-M-36

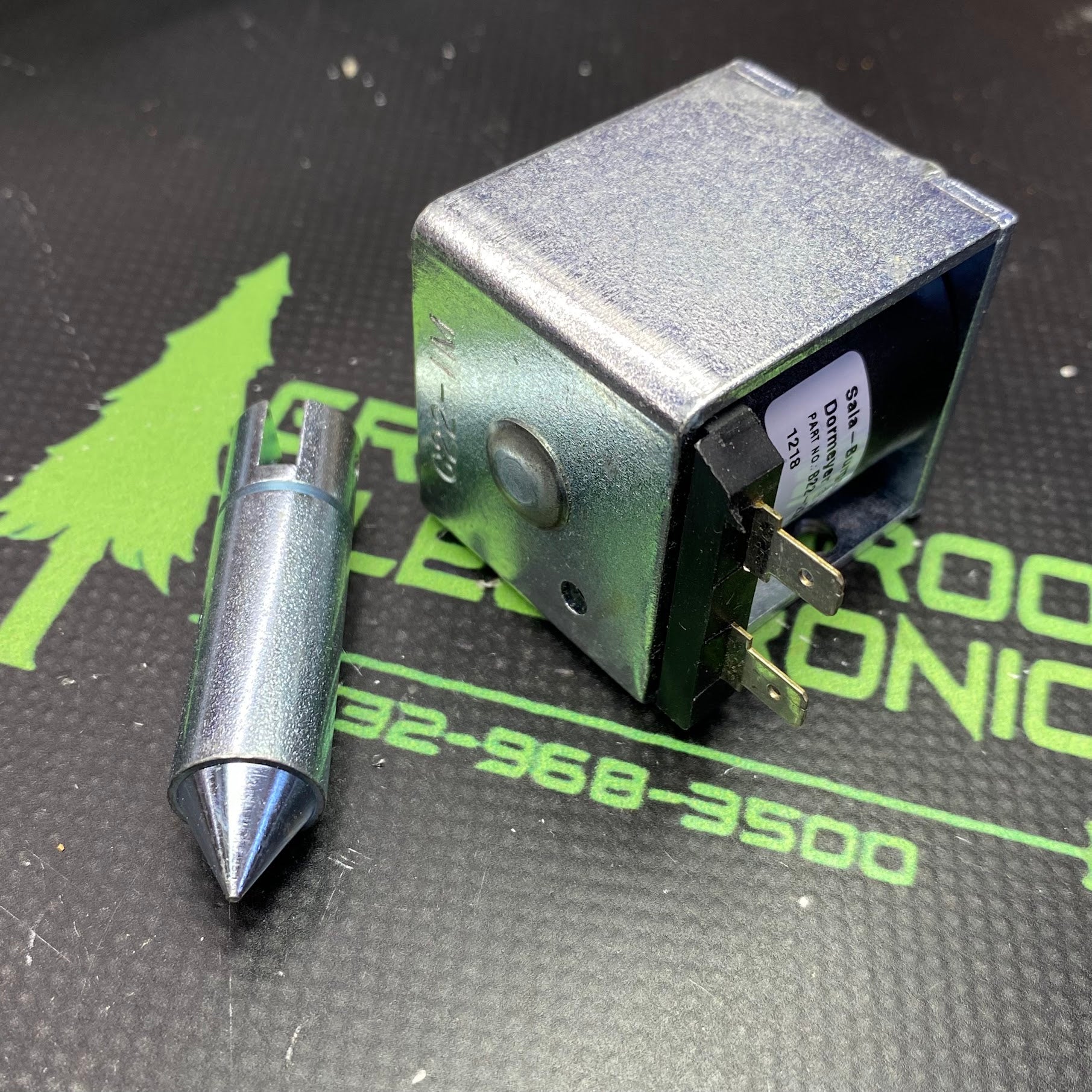

Open-frame electromechanical pull-type solenoid - Operating Voltage: Typically rated for 12V DC, with an operational range of 12V to 38V DC depending on the configuration.
DC Resistance: 14.55
Ω
Ω
to 14.6
Ω
Ω
.
Power Consumption: Nominal power is approximately 9.9W, with a maximum power rating of up to 99W under specific duty cycles.
Force: Provides a pull force of approximately 35.6N (roughly 8 lbs).
Stroke Length: 0.5 inches (12.7 mm).
Termination: 0.187" (4.7mm) Quick Connect terminals
