PKG5

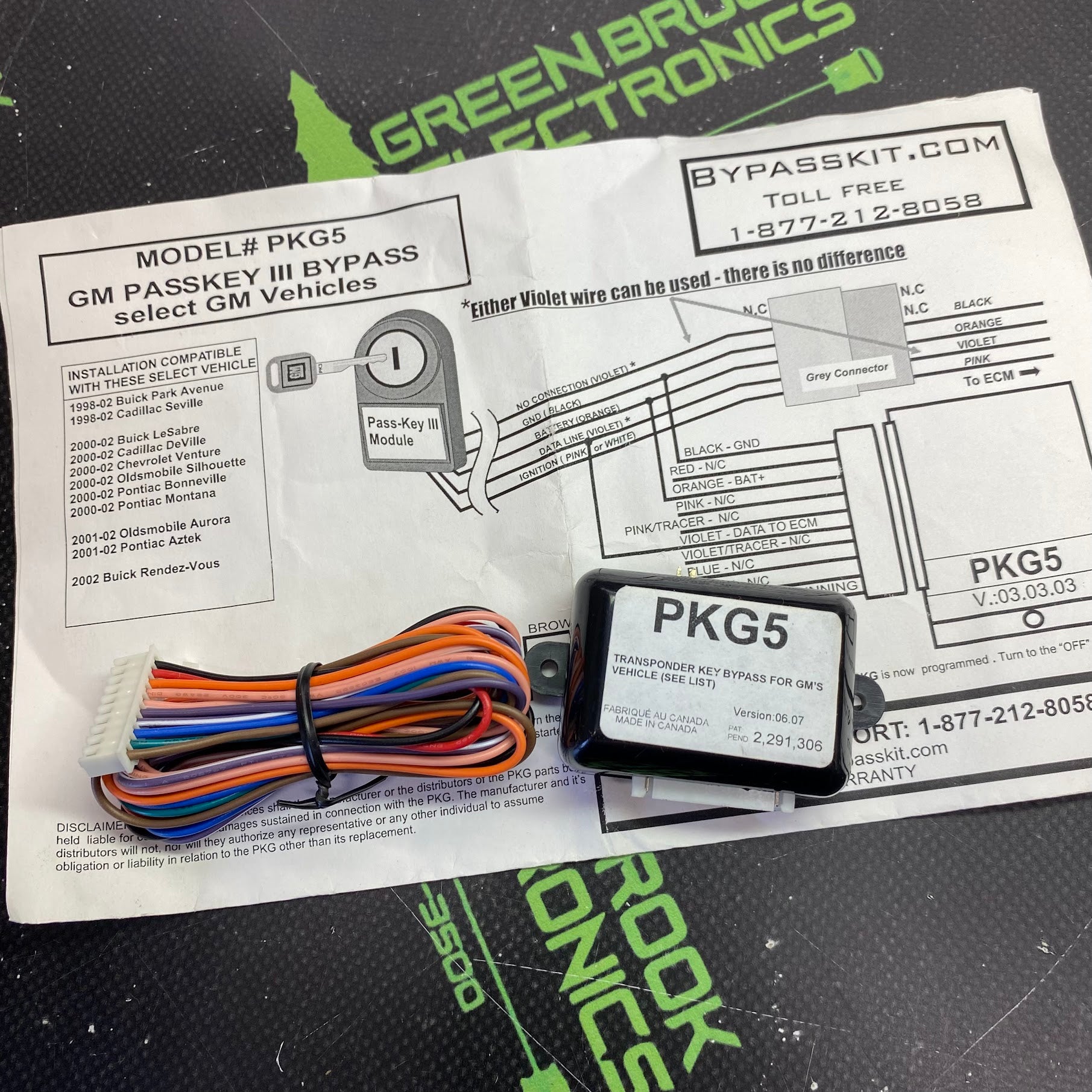

TRANSPONDER KEY BYPASS FOR GM PASSKEY III BYPASS SELECT GM VEHICLES - The PKG5 is a specific firmware version for transponder bypass modules used primarily to override GM Passkey 3 immobilizer systems. This firmware allows for a "no key required" installation, meaning you do not need to leave a physical spare key inside the vehicle to enable remote starting - Purpose: Overrides the factory OEM transponder immobilizer via the vehicle's data bus to allow for remote engine starting.
Key Feature: Unlike universal bypass modules that require a spare key or chip to be placed inside a box near the ignition, the PKG5 firmware handles the override electronically.
Compatibility: Designed for GM Platform #06 vehicles using the Passkey 3 system - Connection: Ensure the module is properly wired; the LED should turn ON.
Ignition: Turn the vehicle key to the IGNITION position. The LED will flash 4 times to indicate successful communication.
Completion: Turn the key to the OFF position. The module is now programmed and ready for useV- 2006–2007 Lucerne
2006–2007 DTS
2007 Aura
2007 Outlook
2007 Sky
2007 XL7 - The PKG5 module is generally compatible with 2004–2007 Chevrolet (Malibu, Cobalt, HHR, Impala, Monte Carlo, Equinox, trucks), 2005–2007 Pontiac (G6, Pursuit, Solstice, Torrent), and 2007 GMC (Acadia, Sierra, Yukon) models equipped with Passkey 3
