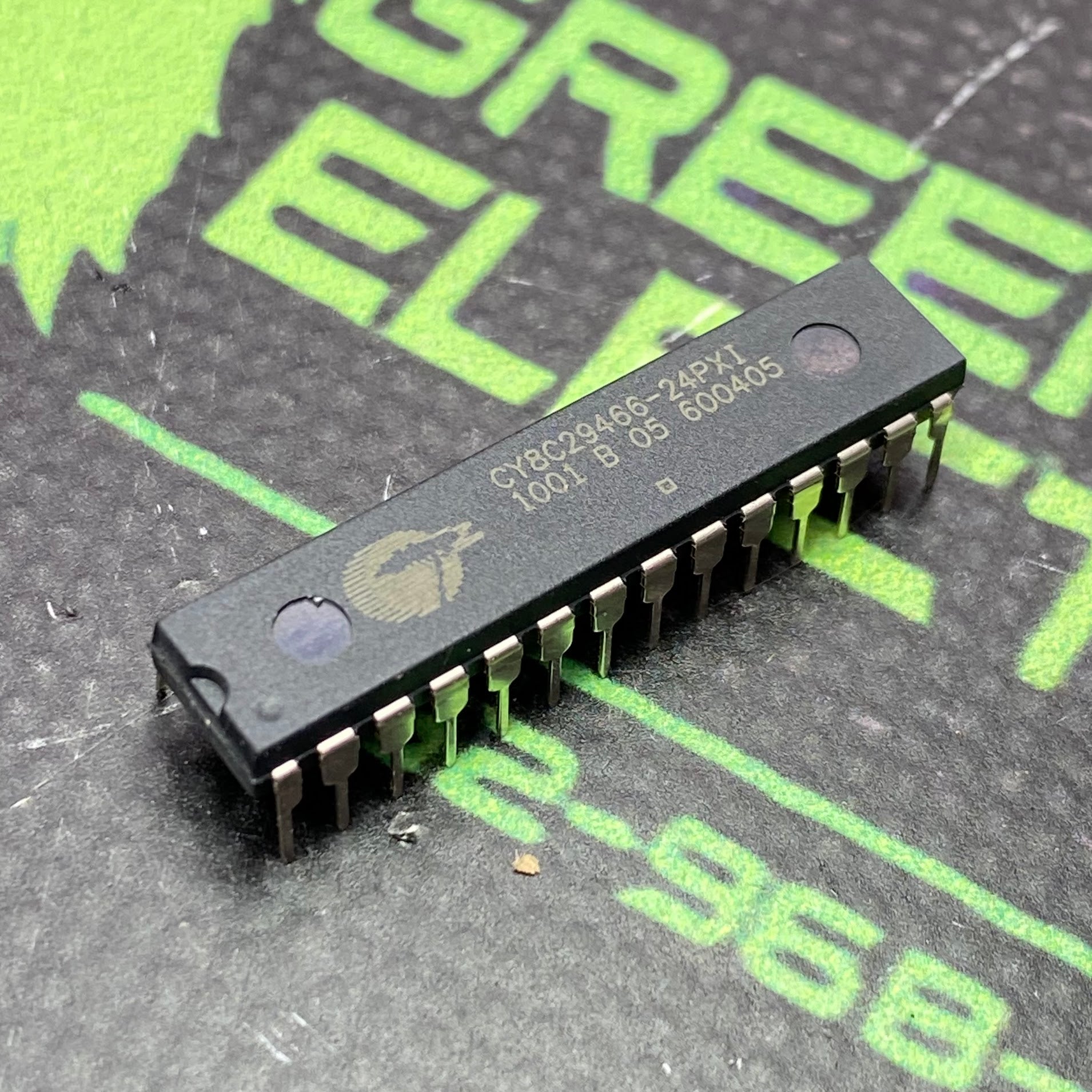

CY8C29466-24PXI

8-bit, 24 MHz PSoC (Programmable System-on-Chip) - Core Processor: M8C
Core Size: 8-Bit
Maximum Clock Frequency: 24 MHz
Program Memory (Flash): 32 KB
Data RAM Size (SRAM): 2 KB
EEPROM Size: 32 KB emulation in Flash
Operating Supply Voltage: 3 V to 5.25 V
Operating Temperature Range: -40°C to +85°C
Number of I/O Pins: 24 programmable I/O
Data Converters:
ADC: 12 channels, up to 14-bit resolution
DAC: 4 channels, up to 9-bit resolution
Interfaces: I²C, SPI, UART/USART
Package Type: 28-pin PDIP (Plastic Dual In-line Package), through-hole mounting
