SUPER6

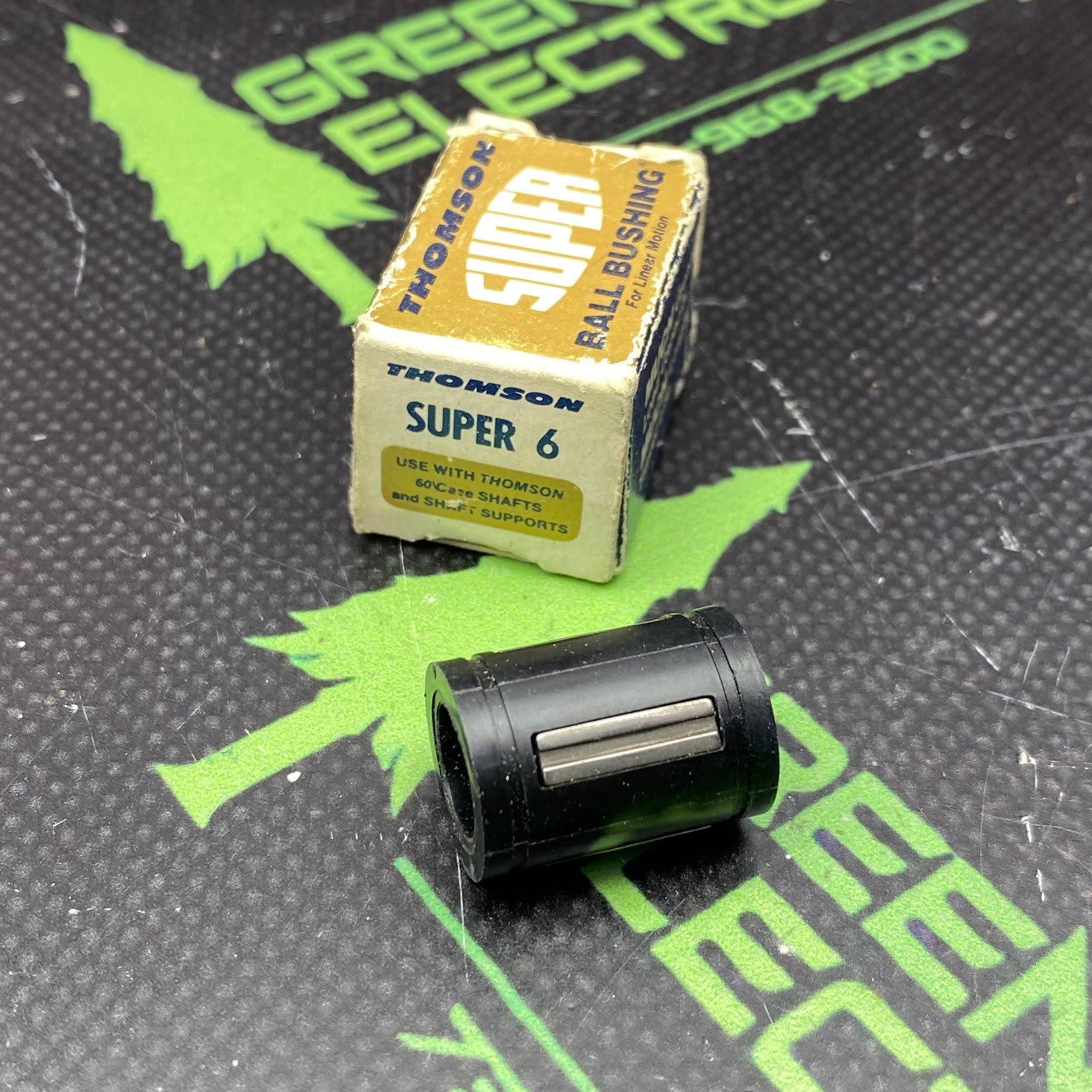

Super Ball Bushing Bearing - SUPER, Ball Bushing Bearing, 0.375 in, Self-Aligning, Closed Type, Non-Adjustable, Not Corrosion Resistant - Nominal Shaft Diameter: 0.375 in (3/8")Outer Diameter (OD): 0.625 in (5/8")Overall Length: 0.875 in (7/8")Inside Diameter Tolerance: \(\pm 0.001\) inOutside Diameter Tolerance: \(\pm 0.00045\) inRetaining Ring Groove Width: 0.039 inWeight: 0.02 lbs (0.009 kg) - Dynamic Load Capacity: 100 lbf (444.8 N)Steady State Speed: Up to 10 ft/s (3 m/s)Limiting Acceleration: 450 \(ft/s^2\)Coefficient of Friction: As low as 0.001Self-Alignment: Up to 0.5 degrees to compensate for base flatness or minor misalignment inaccuracies - Bearing Style: Closed type (standard)Number of Ball Circuits: 4 circuitsBall Material: Chrome SteelRetainer & Sleeve Material: Engineered polymer / Thermoplastic (Delrin)Wiper/Seal Type: No wipers (standard baseline model)Temperature Range: \(0^{\circ }\text{F}\) to \(185^{\circ }\text{F}\) (\(-18^{\circ }\text{C}\) to \(85^{\circ }\text{C}\))Recommended Shafting: Thomson Class L LinearRace shafting
