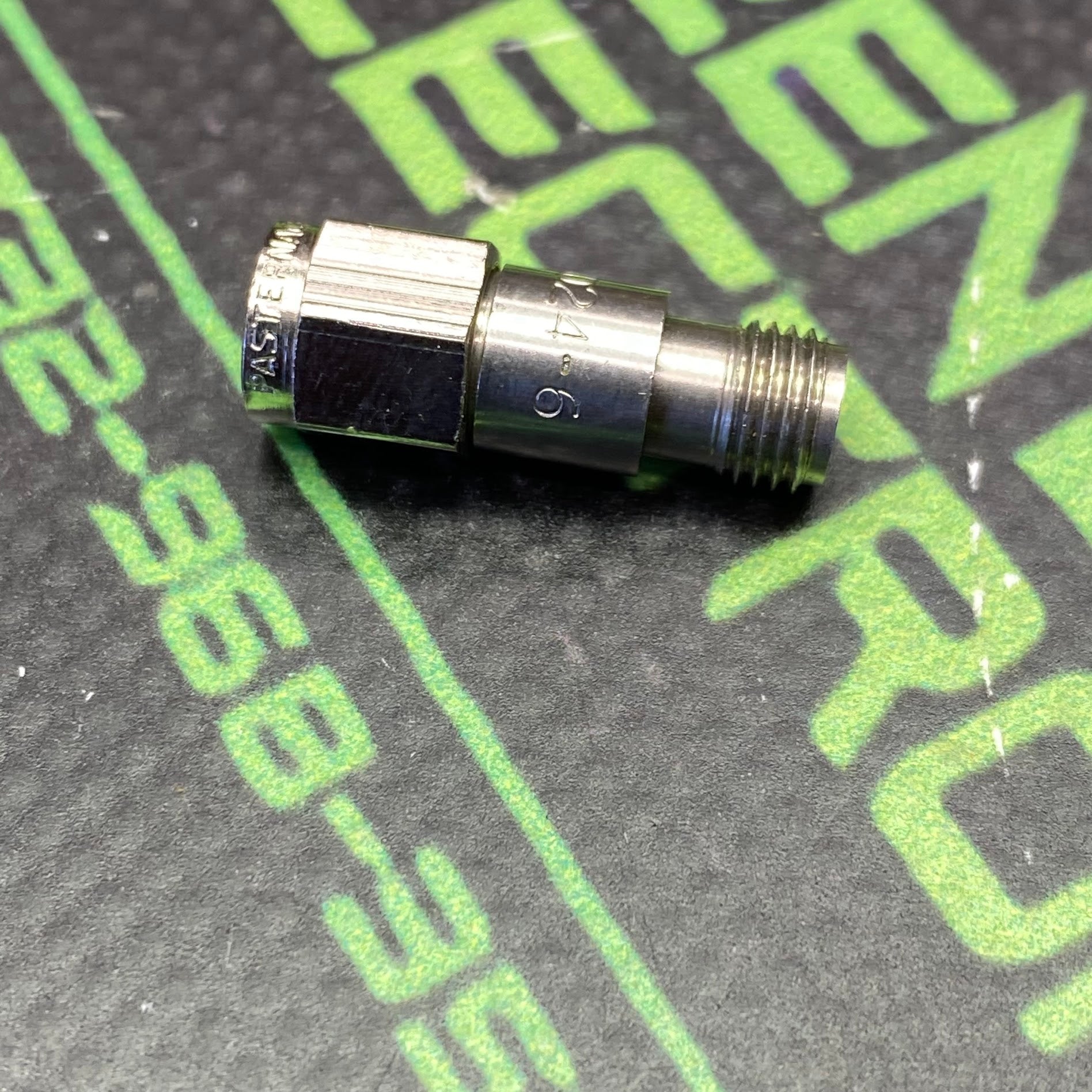

PE7024-6

6dB fixed coaxial attenuator designed for high-frequency RF and microwave applications up to 26.5 GHz - Attenuation: 6 dB
Frequency Range: DC to 26.5 GHz
Power Handling: 2 Watts (Maximum)
Impedance: 50 Ohms
Connectors: 2.92mm Male (Side 1) to 2.92mm Female (Side 2)
VSWR: 1.4:1 (Maximum)
Design: In-line, resistive PI attenuator pad
Body Material: Passivated stainless steel
