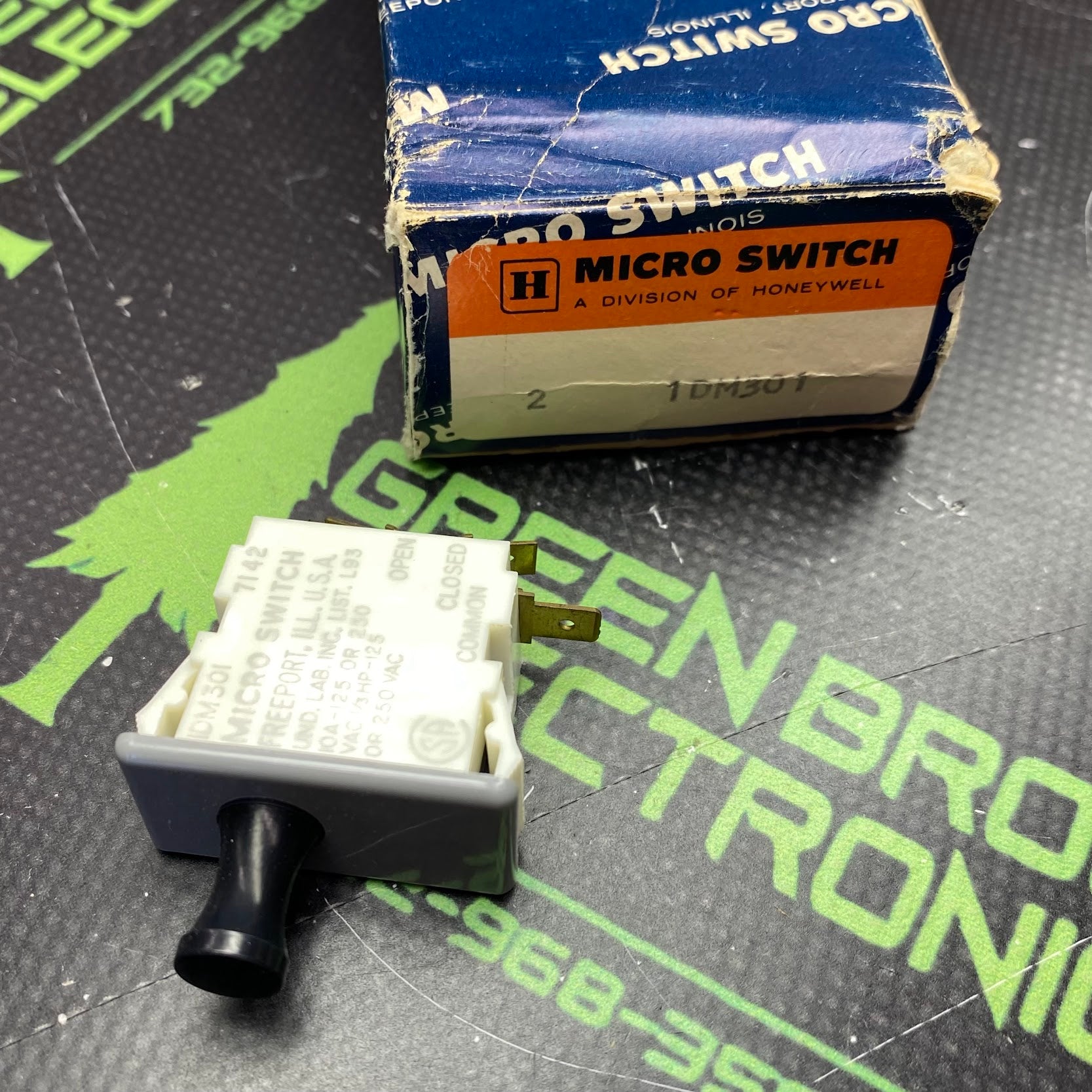

1DM301

Specialized snap-action microswitch - It is primarily used as a door interlock or service panel switch in appliances and industrial equipment - Switch Operation: Push-Pull (The circuit transfers when the plunger is depressed and stays in that position until pulled back).
Circuitry: Single Pole Double Throw (SPDT).
Electrical Rating: 10 A at 125, 250, or 277 Vac.
Actuator Style: Finger grip plunger.
Mounting: Snap-in panel mount for easy installation.
Terminals: Quick-connect (4.78 mm x 0.51 mm / 0.188 in x 0.020 in).
Mechanical Life: Approximately 1,000,000 cycles with 95% survival 5930-01-021-6958
