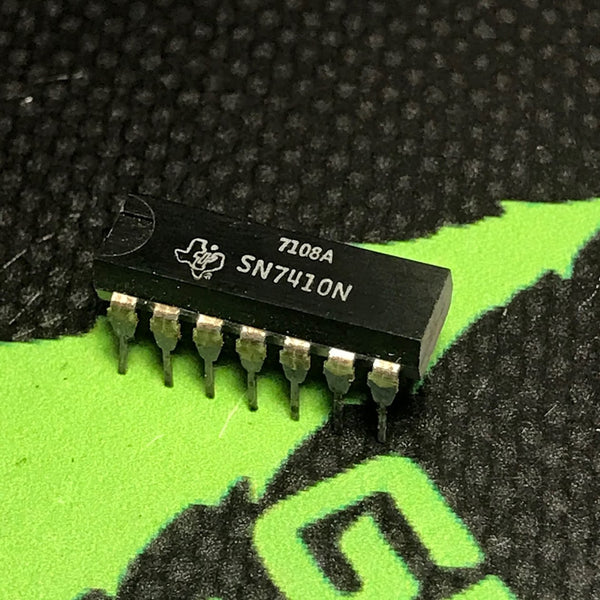

SN7410N

Triple 3-Input Positive-NAND Gate manufactured by Texas Instruments. This classic 14-pin Transistor-Transistor Logic (TTL) component integrates three completely independent, standalone three-input hardware NAND gate circuits into a single monolithic substrate. It functions by driving its output line to a logical low state only when all three of its corresponding input channels are held at a high voltage potential simultaneously, executing multi-input boolean operations at fast bipolar propagation speeds. It was heavily relied upon to manage complex hardware memory address boundaries, handle multi-channel peripheral interrupt priorities, and enforce logic system hardware safety interlocks in early computing architectures. (Industry Equals: Texas Instruments SN7410N, National Semiconductor DM7410N, Fairchild 7410PC, Signetics 7410, Motorola MC7410P, AMD AM7410).
