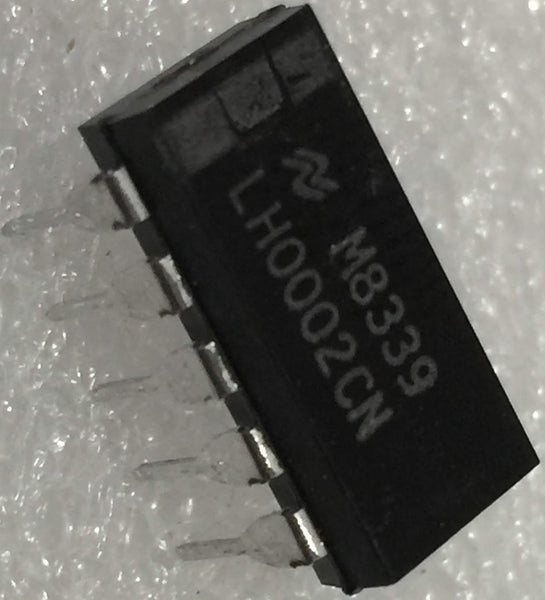

LH0002CN

High-speed, unity-gain buffer amplifier integrated circuit (IC) primarily designed to provide high current drive capability. It is widely used to increase the output current of operational amplifiers within closed-loop configurations - Function: High-speed unity gain buffer.
Frequency Range: DC to over 50MHz.
Current Output: Capable of ±100mA continuous current and ±400mA pulsed current.
Input/Output Impedance: High input impedance (400kΩ) and low output impedance (3Ω–6Ω).
Slew Rate: Typically 200V/μs.
Operating Voltage: ±5V to ±20V.
Package Type: 10-pin molded dual-in-line package (DIP-10).
Temperature Range: Specified for 0°C to +85°C (standard commercial/industrial)
