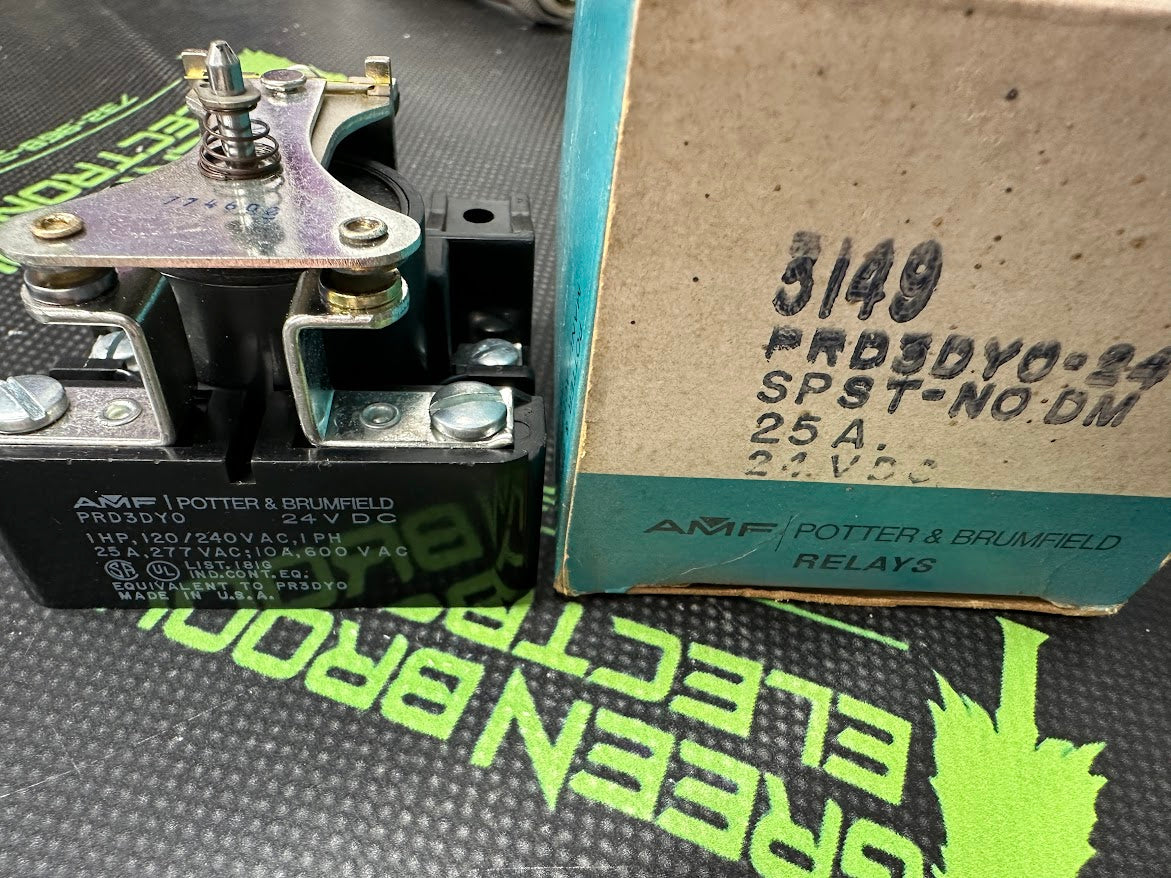

PRD3DY0-24

24VDC heavy-duty, monostable electromechanical power relay. It is specifically engineered for high-current industrial and commercial applications that require robust electrical protection and reliable load switching - Coil Voltage: 24 VDC nominal input.Contact Current Rating: 25 Amps maximum switching capacity.Contact Configuration: SPST-NO (1 Form A / Single Pole, Single Throw, Normally Open).Voltage Switching Maximum: 277 VAC / 50 VDC.Magnetic System: Monostable, DC current type.Operating Temperature: -55°C to 80°C (-67°F to 176°F).Physical Dimensions: 63.5 mm H x 63.3 mm L x 63.8 mm W (Approx. 2.5 in cubed)
