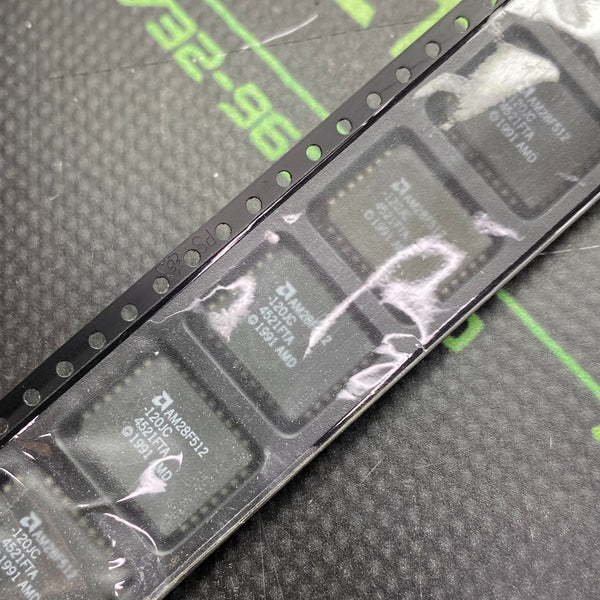

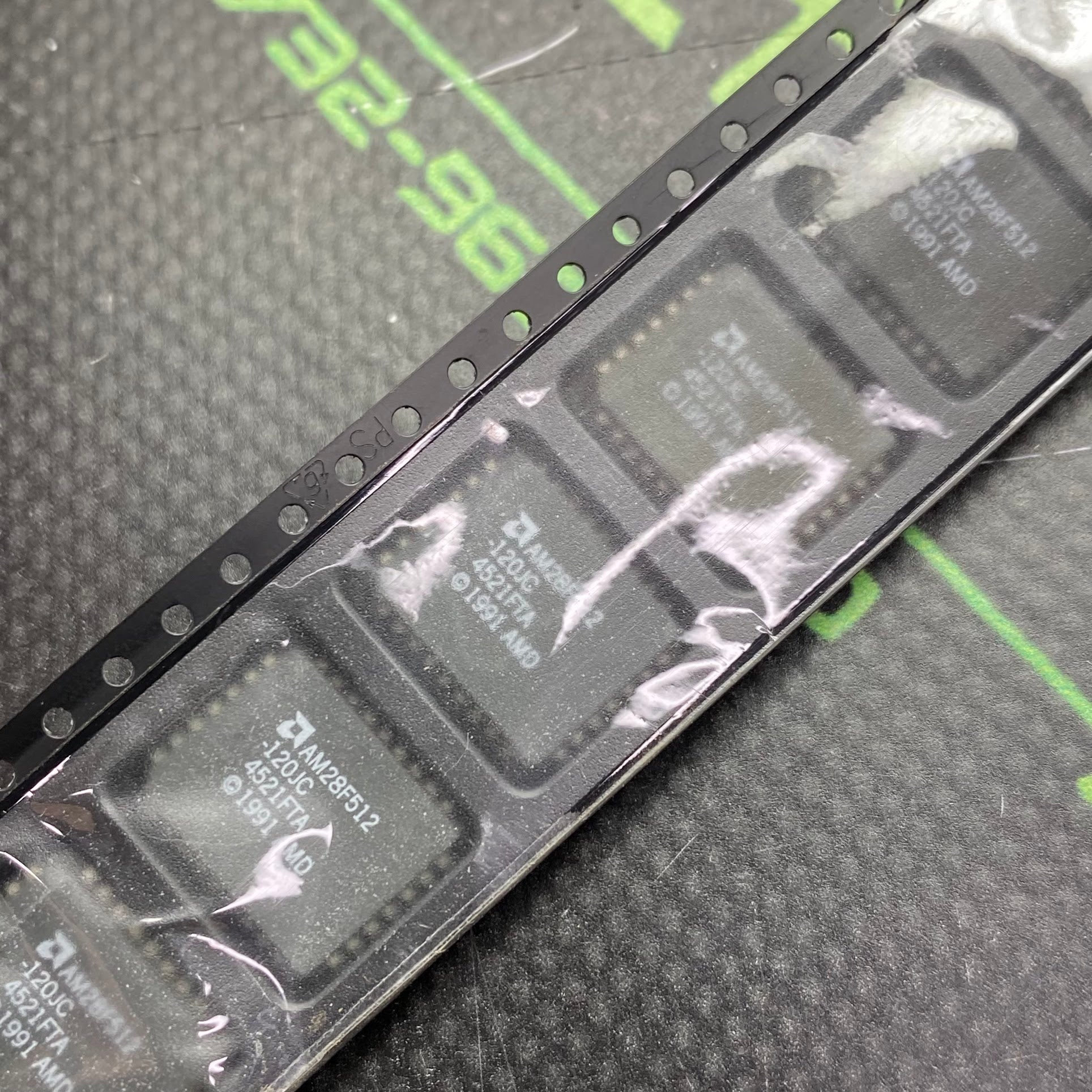

AM28F512-120JC

512 Kilobit (64 Kbytes x 8-bit) CMOS Flash Memory integrated circuit originally manufactured by AMD (Advanced Micro Devices). It operates at a standard 5V read voltage and features a 120-nanosecond access time. The component is housed in a 32-pin PLCC (Plastic Leaded Chip Carrier) surface-mount package and is frequently used to store legacy device firmware, boot codes, and automotive Engine Control Unit (ECU) tuning maps - Am28F512: Base model denoting a 512 Kbit Flash memory architecture.-120: Indicates a maximum data access time speed of 120 nanoseconds.J: Specifies the package type, which is a PLCC (Plastic Leaded Chip Carrier).C: Denotes a Commercial operating temperature range spanning 0°C to +70°C. Memory Capacity: 512 Kbit organized strictly as 64K x 8-bit.Supply Voltage (Read): Min 4.5 V to Max 5.5 V.Program/Erase Voltage: Requires a 12.0 V Vpp power supply.Interface Type: Parallel data bus.Control Pins: Dedicated Chip Enable (CE#) and Output Enable (OE#) lines to manage bus contention.Durability Endurance: Rated for up to 10,000 electrical program and erase cycles. Automotive Maintenance: Widely sourced for repairing, flashing, or chip-tuning older generation vehicle automotive ECUs.Industrial Equipment: Retaining system configuration settings, calibration data, and baseline logic control algorithms.Legacy Electronics: Storing operational firmware for old network routers, switches, and ancient microcontrollers
