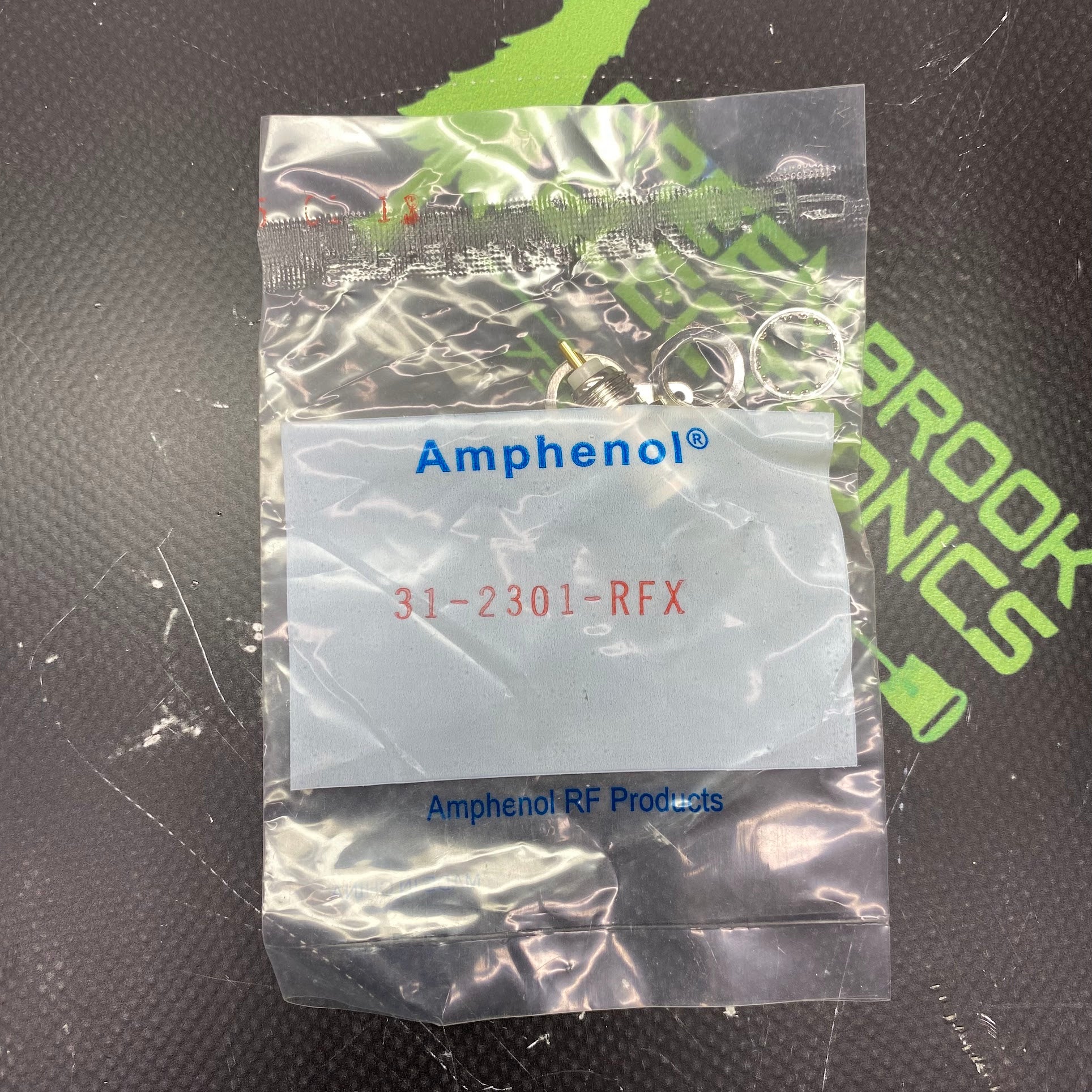

31-2301-RFX

TNC bulkhead jack (female socket) RF coaxial connector designed for commercial applications, featuring 50 Ohm impedance and solder cup termination - Connector Type: TNC Coaxial
Body Style: Straight Bulkhead Jack (Receptacle, Female Socket)
Impedance: 50 Ohms
Termination Method: Solder cup for the contact, solder tag for the shield
Mounting Type: Panel Mount, Bulkhead - Front Mount
Frequency - Max: 11 GHz
Voltage Rating: 500 V
Body Material: Brass with Nickel plating finish
Contact Material: Phosphor Bronze or Beryllium Copper with Gold plating finish
Dielectric Material: Polytetrafluoroethylene (PTFE)
Operating Temperature: -65°C to 165°C
