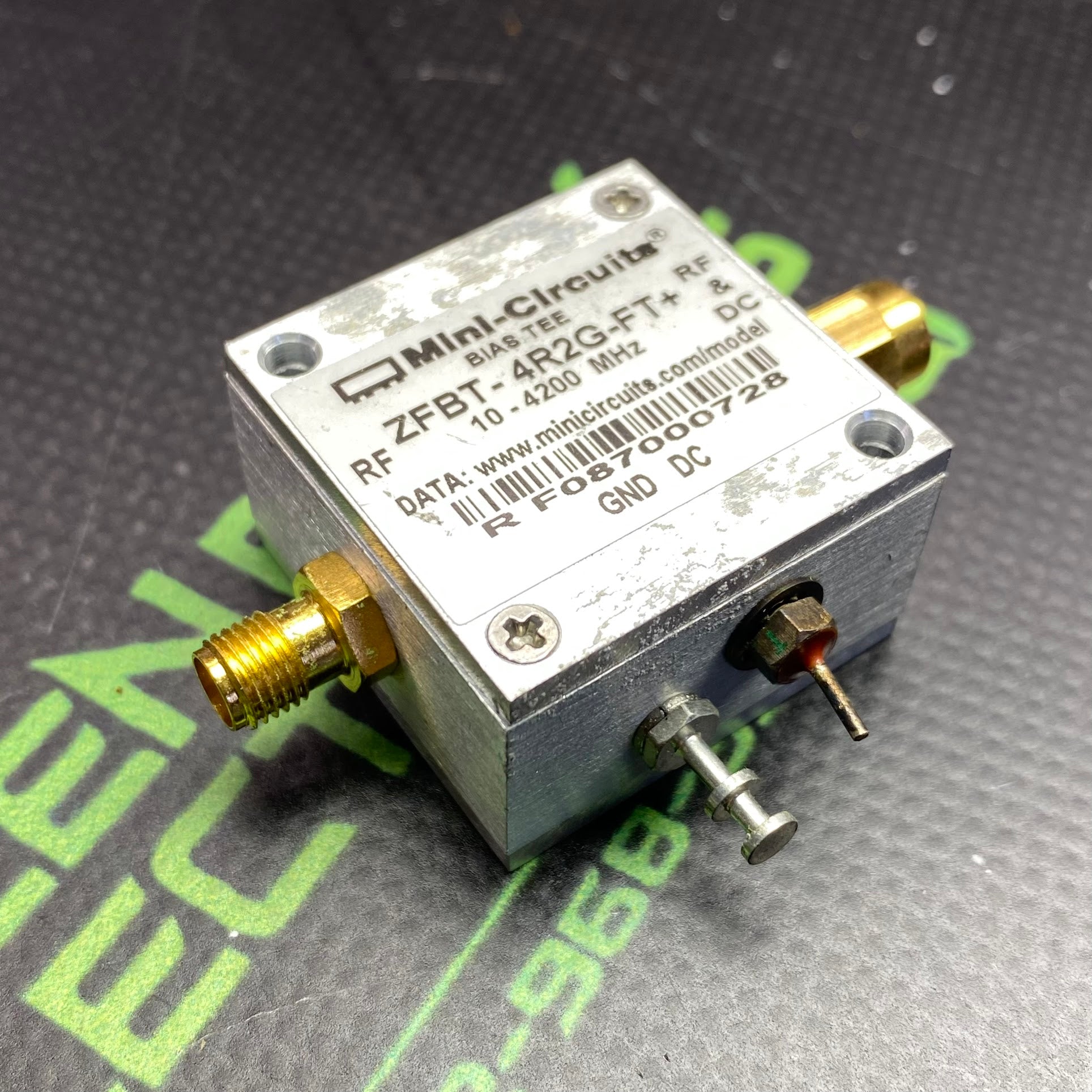

ZFBT-4R2G-FT+

Wideband, coaxial bias tee designed to inject DC power into an RF signal line without affecting the RF performance. It operates across a frequency range of 10 to 4200 MHz and is commonly used for biasing amplifiers, laser diodes, and active antennas - USED - Frequency Range: 10 MHz to 4.2 GHz.
Insertion Loss: Typically 0.6 dB.
Maximum DC Voltage: 30 V.
Maximum DC Current: 500 mA (0.5 A).
RF Power: Up to 30 dBm (1 W) maximum.
VSWR: Typically 1.13:1.
Connectors: Features a SMA female RF input, a SMA male RF+DC output, and a feed-through pin for the DC port.
Operating Temperature: -55°C to 100°C
