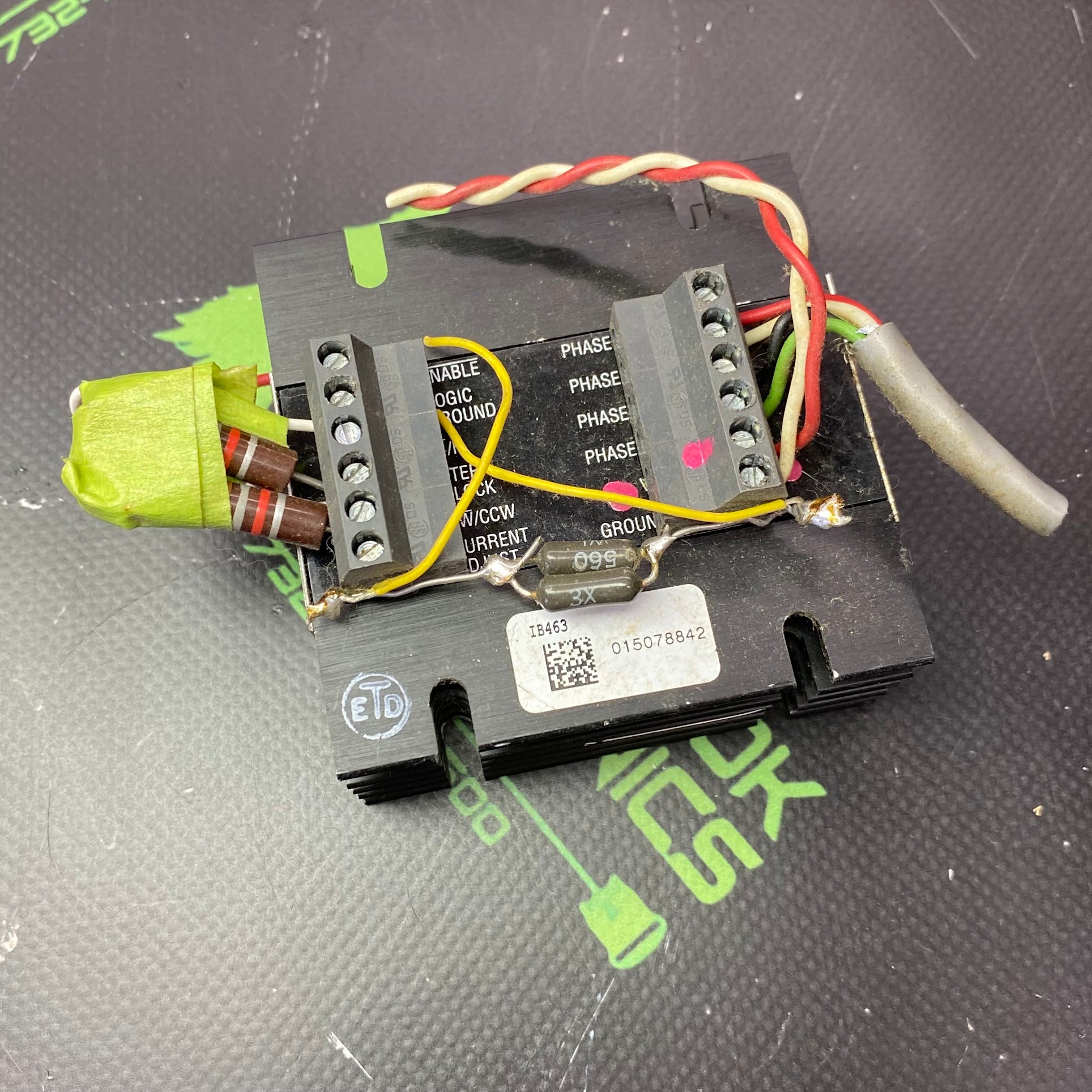

IB463

Miniature, high-performance bipolar stepper motor driver used in industrial automation and motion control applications. It is designed to control the movement of stepper motors with precision - The IB463 is a compact, cost-effective solution for applications requiring reliable motor control where size and cost are important factors.
Function: It acts as a stepper motor driver and controller, converting step and direction signals into the necessary currents to drive a bipolar stepper motor.
Performance: It is a high-efficiency "chopper drive" that operates at a frequency over 20 kHz, which effectively eliminates audible noise from the motor.
Output Current: The device can deliver up to 3.5 Amps per phase.
Input Voltage: It operates from a single DC power supply ranging from +12 to +40 VDC.
Physical Design: Its small size makes it suitable for PC board mounting or chassis mounting.
Control: It offers both full-step and half-step operation modes and features optically isolated inputs for enhanced noise immunity.
Power: It is capable of delivering up to 230 Watts of power - used - pulled from working equipment
