MC1438R

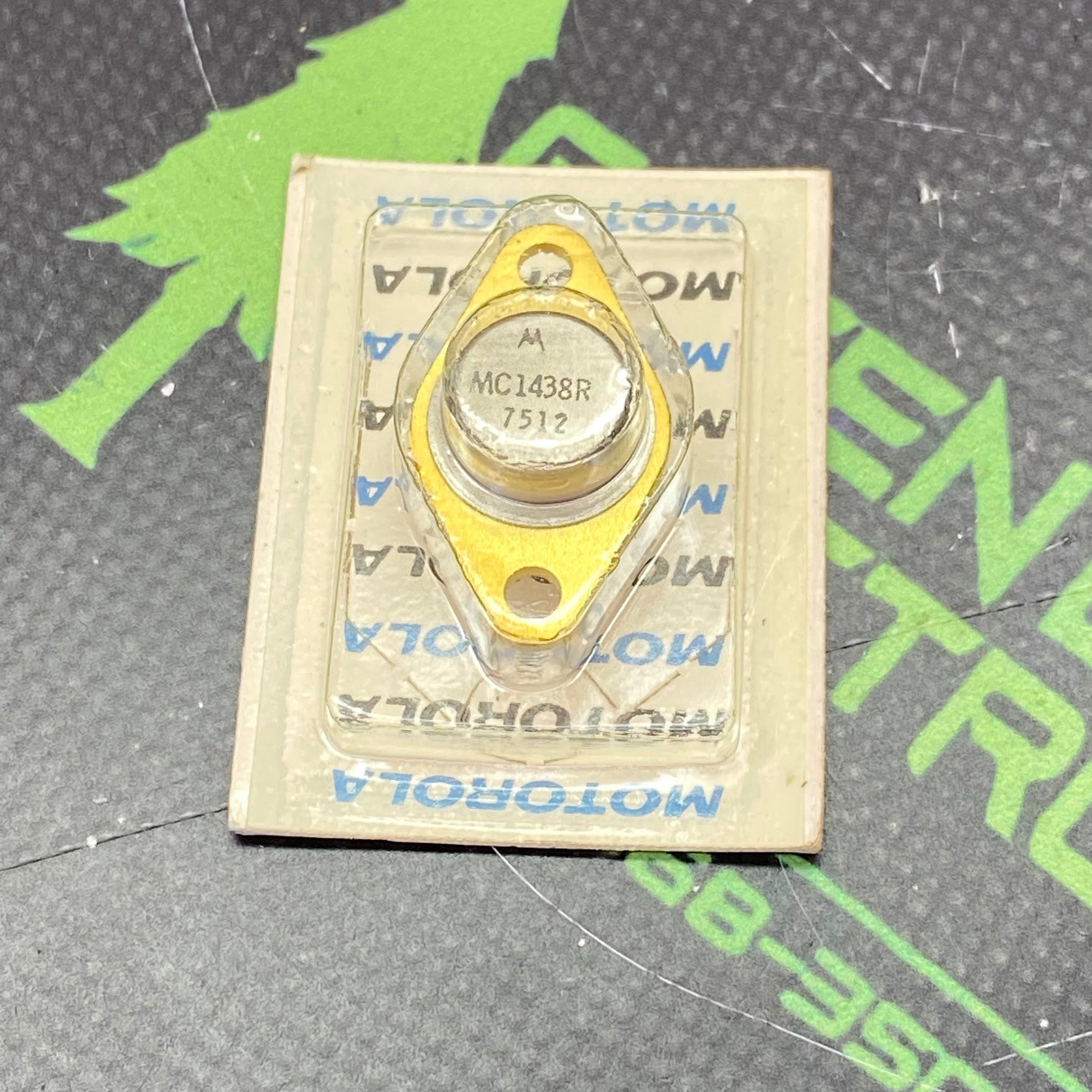

Silicon monolithic integrated circuit (IC) operational amplifier power booster. It operates as a high-current buffer amplifier designed to extend the output capabilities of standard, small-signal operational amplifiers - Primary Function: High current gain buffer amplifier / Power booster.Current Output: Delivers high load currents up to ±300 mA.Voltage Gain: Unity voltage gain (\(0\text{ dB}\)); however, it provides a high current gain of roughly \(70\text{ dB}\).Supply Voltage: Nominal operational voltage is \(\pm15\text{ V}\) (Maximum limit up to \(\pm18\text{ V}\)).Technology: Bipolar.Package / Case Type: Heavy-duty TO-66-9 metal can package, often featuring 9 or 10 gold pins for reliable bottom-wire connection and heat dissipation.Temperature Grade: Commercial grade, rated for operations between \(0^\circ\text{C}\text{ to }70^\circ\text{C}\)
