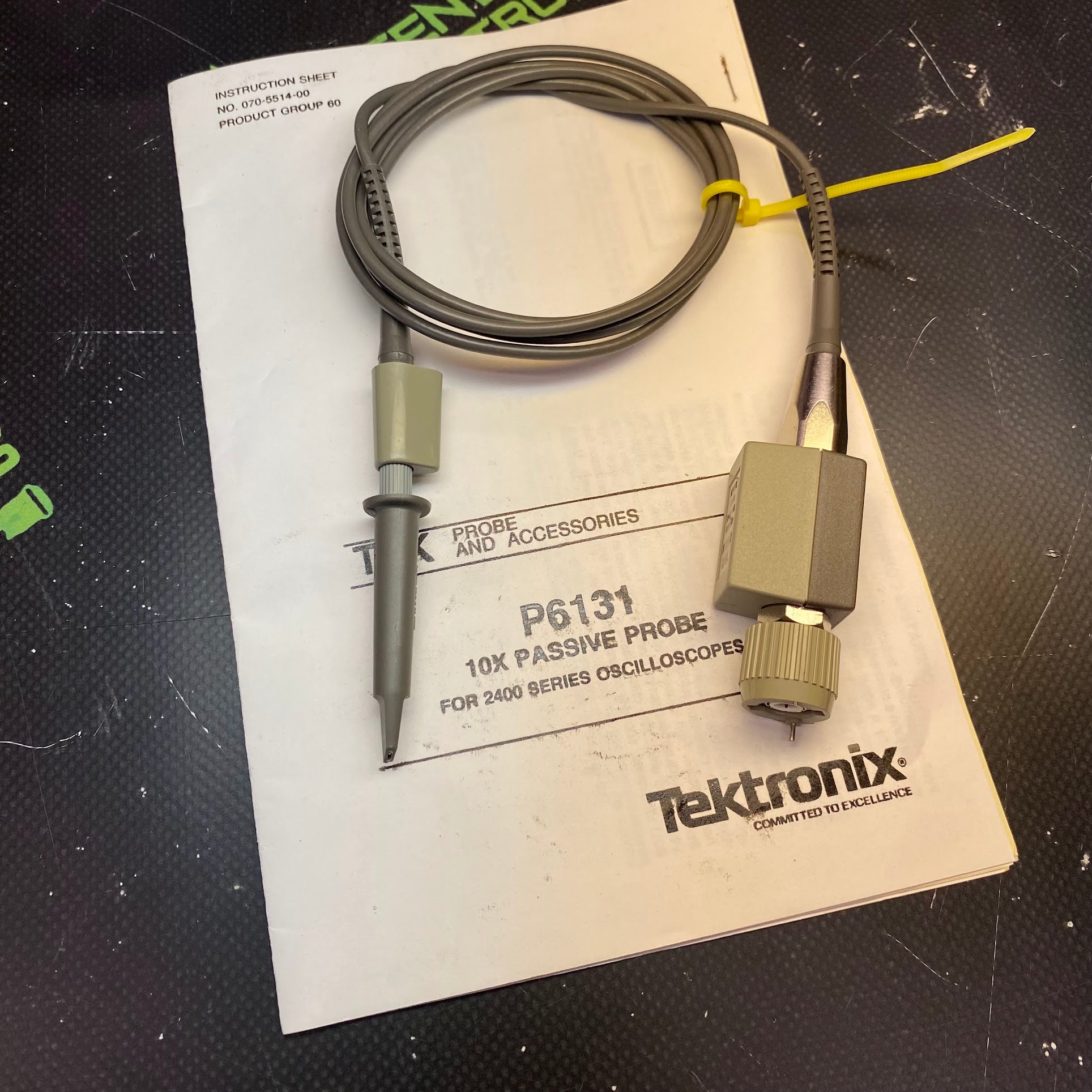

P6131

Subminiature, modular 10X passive voltage oscilloscope probe designed primarily for use with the Tektronix 2400 Series (such as the 2445 and 2465 models) and 7A42 instruments. It features an integrated scale-factor readout pin that automatically communicates the 10X attenuation factor to compatible oscilloscope displays - Bandwidth: DC to 300 MHz (with 1.3-meter cable) or DC to 250 MHz (with 2-meter cable).Attenuation: 10X (\(\pm1\%\) at DC).Input Resistance: 10 M\(\Omega \) when connected to a 1 M\(\Omega \) scope input.Input Capacitance: 10.8 pF (1.3m cable) or 13.5 pF (2m cable).Compensation Range: 14 pF to 18 pF
