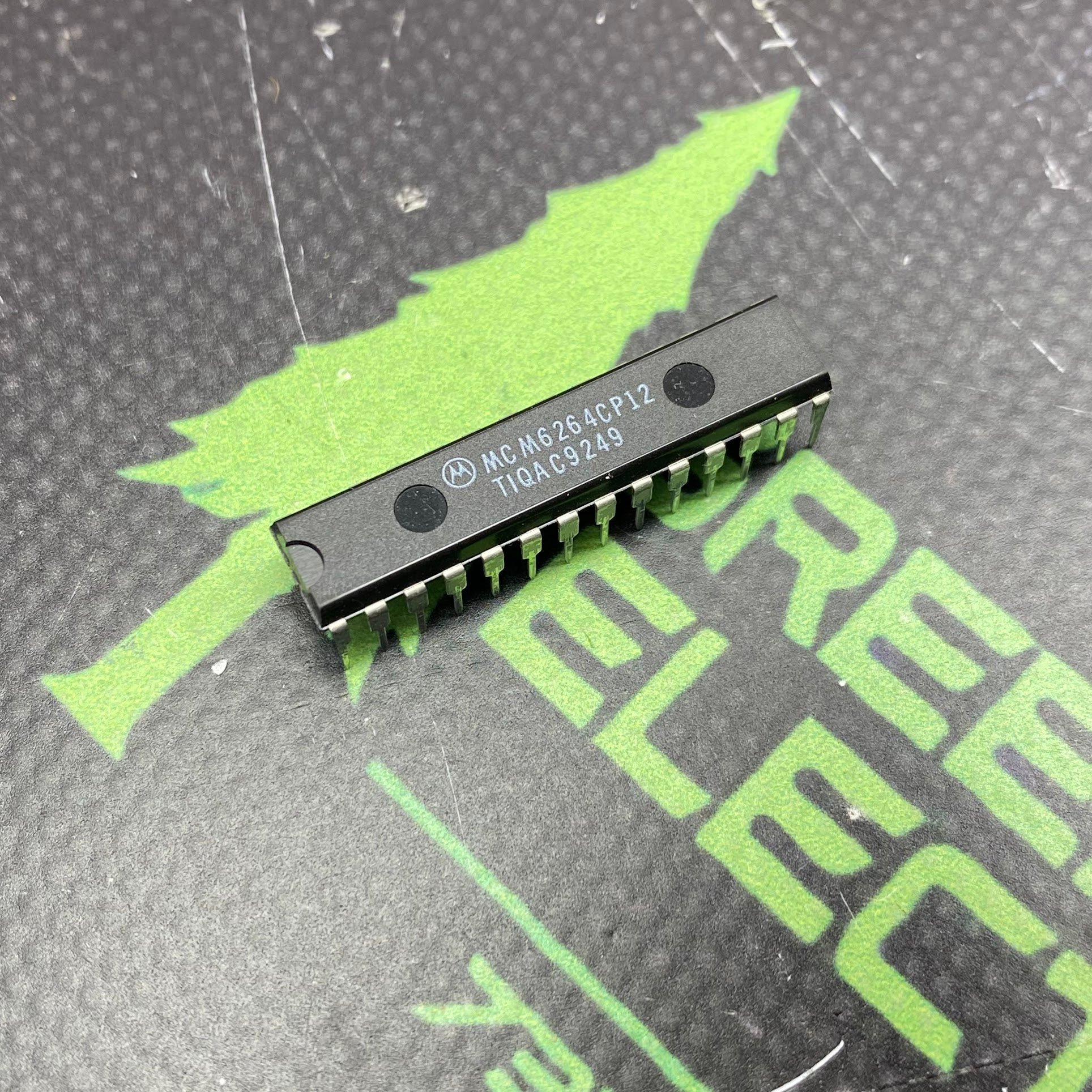

MCM6264CP12

High-performance 8K x 8-bit (64 Kilobit) Fast Static RAM (SRAM) manufactured by Motorola using their high-performance silicon-gate CMOS technology - Memory Capacity: 8,192 words by 8 bits (64 Kb total capacity).Access Time: 12 nanoseconds (ns), indicating the maximum speed for address and chip enable access.Supply Voltage: Single 5.0V (\(\pm 10\%\)) power supply.Package Type: Plastic Dual Inline Package (PDIP-28, 300 mil width), denoted by the P designator.Technology: Fully static design requiring no external clocks or timing strobes.I/O Compatibility: Fully TTL compatible with three-state outputs to eliminate bus contention.Control Pins: Features dual Chip Enables (\(E_1, E_2\)) and an Output Enable (\(G\)) for increased system flexibility. text +---_---+
NC |1 28| VCC
A12 |2 27| W (Write Enable)
A7 |3 26| E2 (Chip Enable 2)
A6 |4 25| A8
A5 |5 24| A9
A4 |6 23| A11
A3 |7 22| G (Output Enable)
A2 |8 21| A10
A1 |9 20| E1 (Chip Enable 1)
A0 |10 19| DQ7
DQ0 |11 18| DQ6
DQ1 |12 17| DQ5
DQ2 |13 16| DQ4
VSS |14 15| DQ3
+-------+
