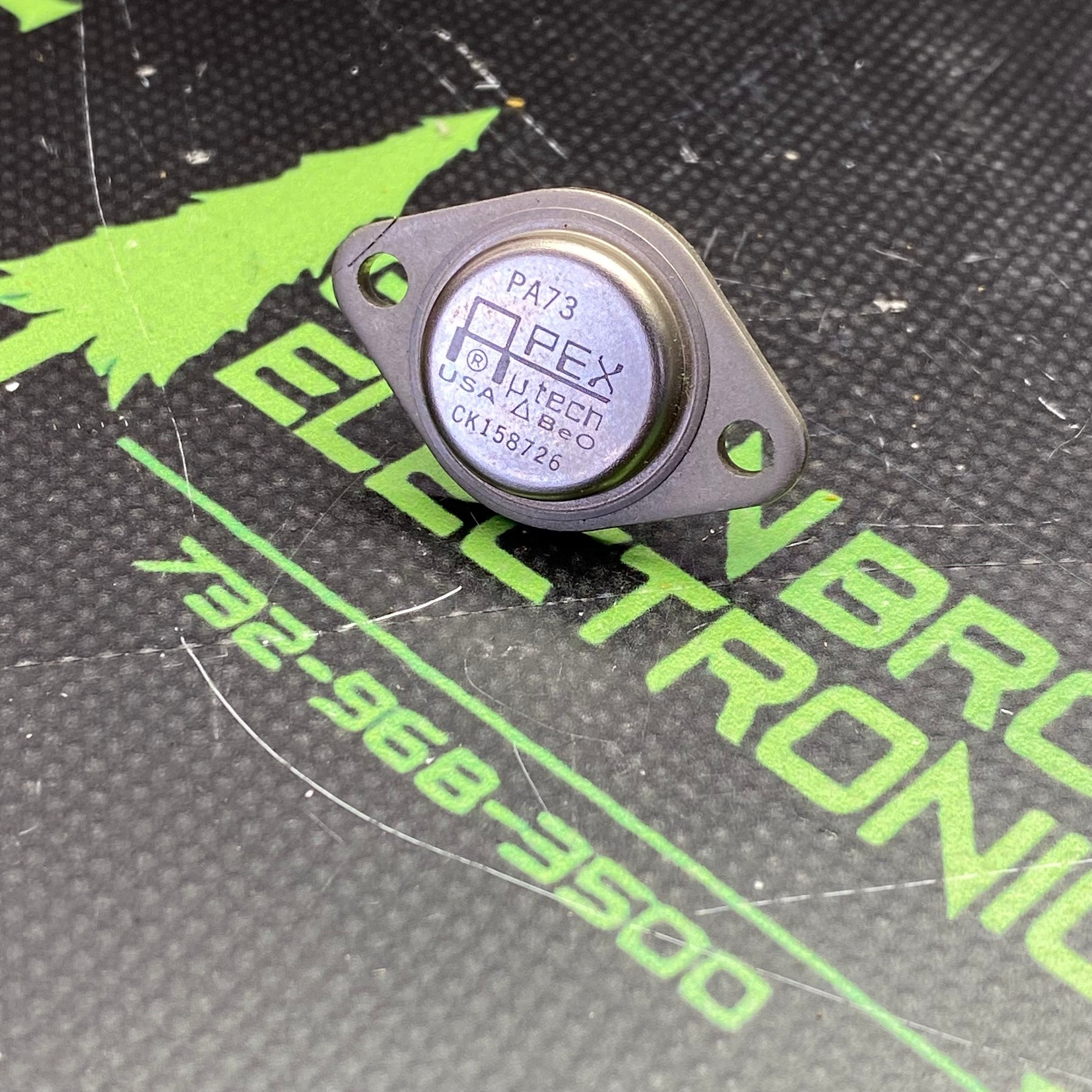

PA73

High-performance power operational amplifier designed for driving resistive, inductive, and capacitive loads. It is particularly optimized for low-frequency applications like motor control and actuator drivers where cost efficiency is prioritized over crossover distortion - Output Current: Features high output current, capable of reaching up to ±5A Peak.Supply Voltage: Operates with a supply voltage up to ±30V (60V total).Output Stage: Utilizes a Class C complementary common emitter output stage, making it an "economy" alternative to the more linear Class A/B PA01.Package: Housed in an 8-pin TO-3 metal package that is hermetically sealed and electrically isolated up to 300V.Internal Compensation: The device is internally compensated for all gain settings - Motor and Synchro Drivers: Ideal for DC or AC motion control.Valve and Actuator Control: Reliable for heavy mechanical load driving.Magnetic Deflection: Used in circuits up to 4A.Programmable Power Supplies: Integration into power management systems CK158726
