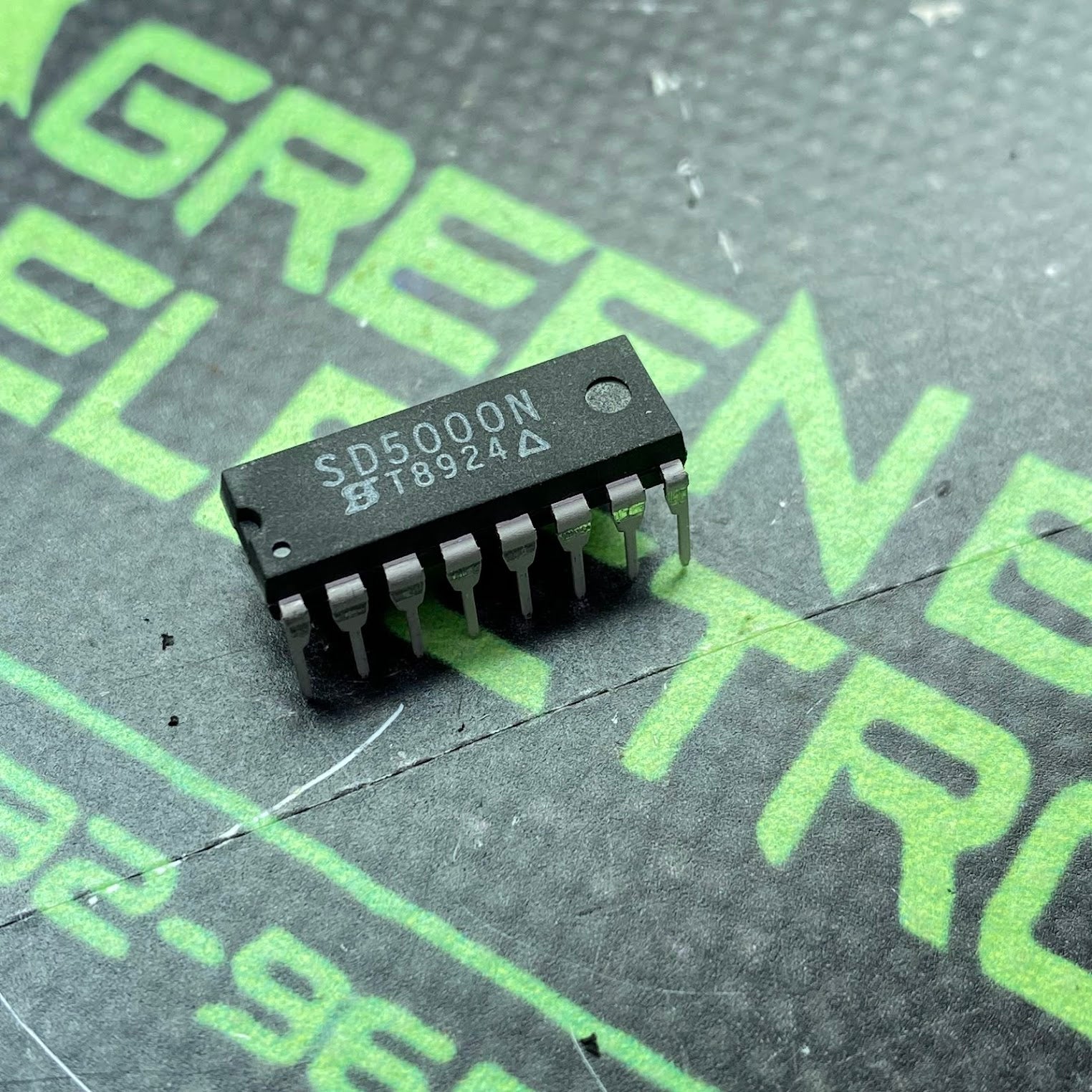

SD5000N

Monolithic quad N-channel lateral DMOS FET switch array designed for high-speed analog switching and power applications. It features four independent bidirectional switches on a single chip, typically housed in a 16-pin Plastic Dual-In-Line Package - Device Type: Quad High-Speed N-Channel Lateral DMOS FET Switch.Voltage/Current: Typically rated for 20V and 0.05A (50mA).Protection: Includes Zener diode protection for gate-to-source safety.Control Logic: Features a low maximum threshold voltage (typically around 2V), making it compatible with simple TTL and CMOS driving.Applications: Widely used in video switches, high-speed analog multiplexing, and ultra-high-speed signal switching
