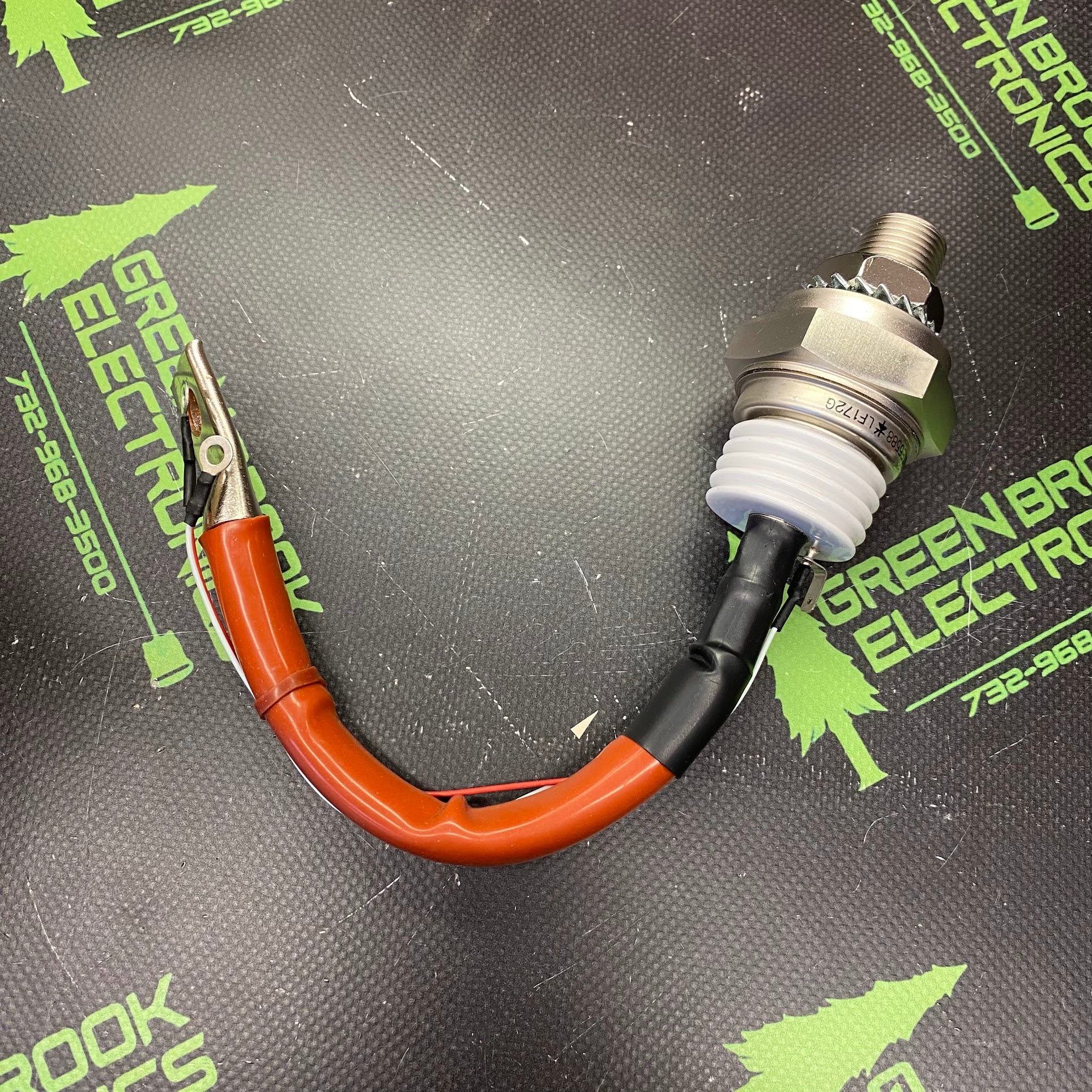

NTE5588

SCR-1600VRM 360A TO-93 IGT=150MA - Repetitive Peak Off-State Voltage (VDRM/VRRM): 1600V
On-State RMS Current (IT(RMS)): 360A
Surge Current (ITSM): 1800A (at 60Hz)
Gate Trigger Current (IGT): 150mA maximum
Gate Trigger Voltage (VGT): 3.0V maximum
Operating Temperature: -40°C to +125°C
Package Type: TO-93 stud case
