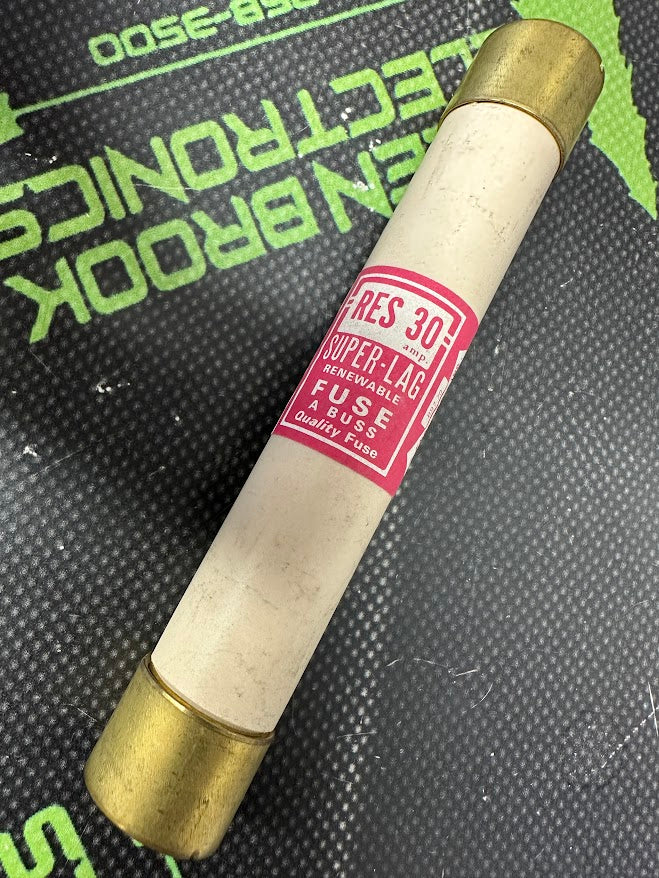

RES30

30A 600V FUSE - 30 Amp, 600V Class H "Super-Lag" renewable cartridge fuse. It is primarily used in industrial and commercial electrical systems where the available fault current is less than 10,000 - Current Rating: 30 Amps.
Voltage Rating: 600 VAC.
Interrupt Rating: 10 kAIC (kiloampere interrupting capacity).
Fuse Class: Class H.
Characteristic: "Super-Lag" time-delay, which allows it to sustain momentary overloads (like motor starting currents) without opening needlessly.
Design: Renewable cartridge (ferrule ends) made of melamine. The "renewable" designation means the internal fuse link can be replaced once blown, rather than replacing the entire cartridge.
Dimensions: Approximately 0.81 inches in diameter and 5 inches in length
