GRENINGER CHART KIT #1

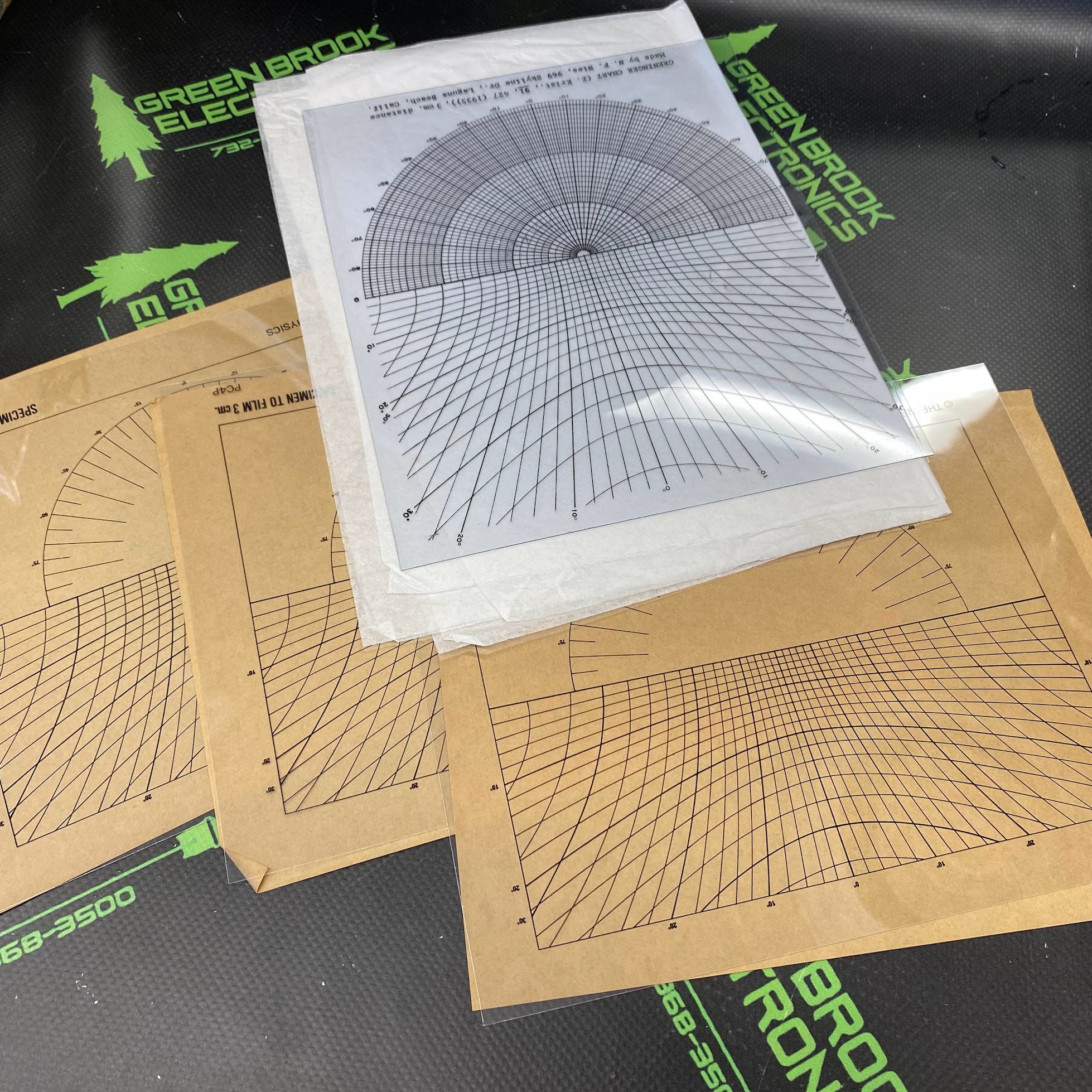

X-RAY DIFFRACTION Trigonometric chart used to interpret Laue photographs in crystallography, specifically for back-reflection patterns. By placing the chart over the X-ray diffraction film, scientists can determine the angular relations between crystallographic planes and zones, allowing them to index the spots and determine the crystal's orientation. The chart represents the gnomonic projection of the crystal's reciprocal space onto the film plane, with hyperbolic curves showing zones of planes and lines of latitude and longitude representing specific angles - 6-3/4" X 8"
