90180

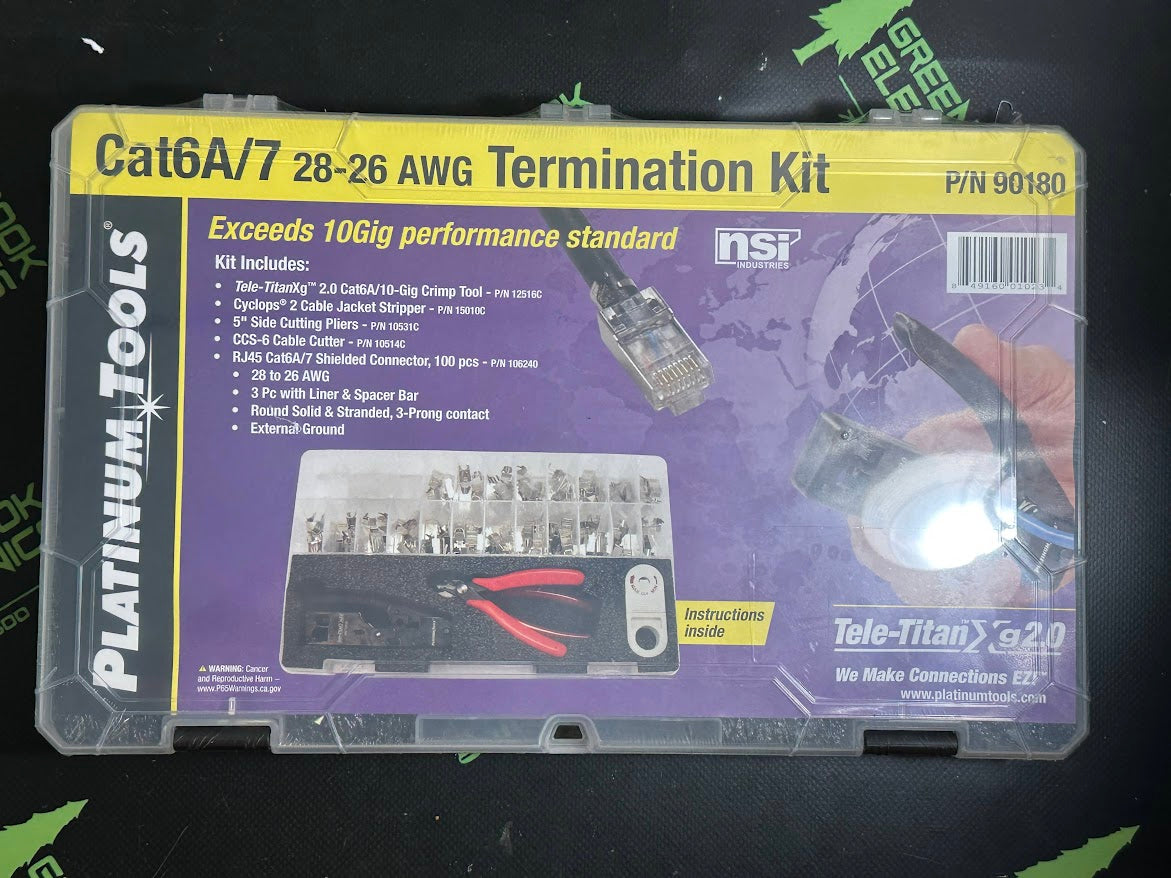

Cat6A/7 28 - 26 AWG Termination Kit. - The Cat6A/7 Termination Kit is the perfect system for providing Cat6A/7 terminations for audio, data, and video applications. Included in the kit is the RJ45 Cat6A/7 Shielded Connector with a three-piece bar & liner design that provides true Cat6A/7 performance with every crimp. These connectors are made to fit the Tele-TitanXg™ 2.0 which combines two crimpers into a single tool, making connector and external ground crimping easy.

Cable Parameters:
• Wire gauge range: 28 – 26 AWG
• Cable jacked OD range: 0.244”-0.335” (5.7-8.5mm)
• Insulation diameter range: 0.037”- 0.041” (0.94-1.05mm)

Kit Includes:
• Tele-TitanXg™ 2.0 Cat6A/10Gig Crimp Tool – P/N 12516C
• Cyclops® 2 Cable Jacket Stripper – P/N 15010C
• 5” Side Cutting Pliers – P/N 10531C
• CCS-6 Cable Cutter – P/N 10514C
• RJ45 Cat6A/7 Shielded Connector, 100 pcs – P/N 106240
