106242

RJ45 Cat6A/7, STP, Solid/Stranded, 28-26 AWG - 106242

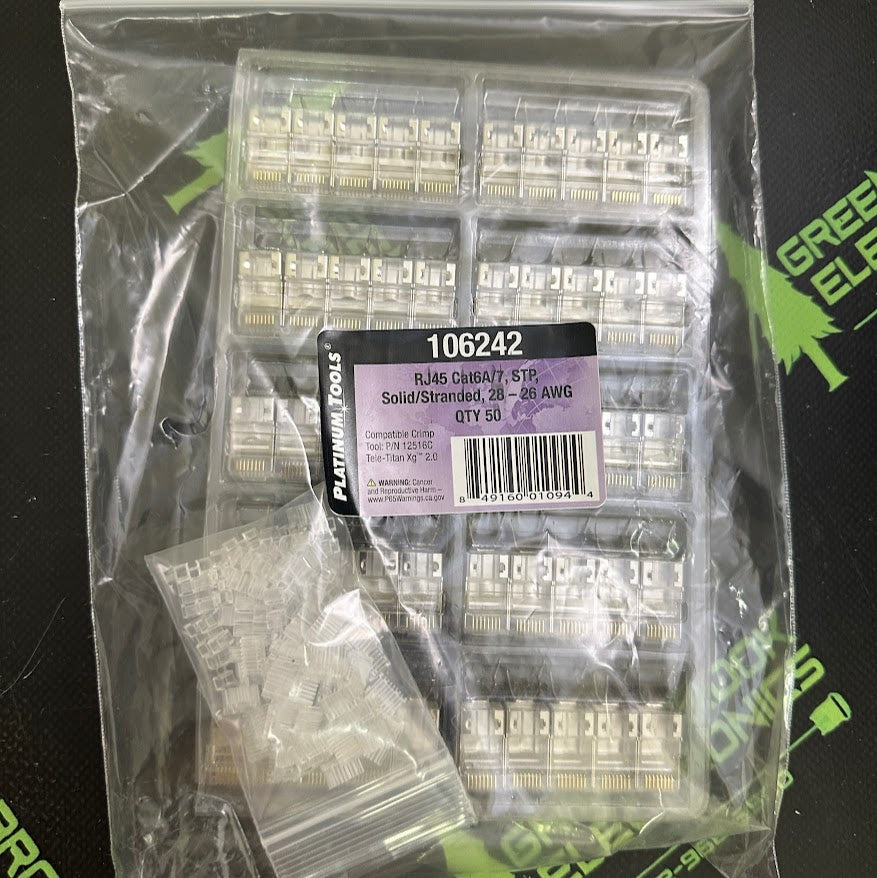

RJ45 Cat6A/7 STP, Solid/Stranded, 28–26 AWG, 50/Bag. - This shielded Cat6A/7 RJ45 (8P8C) modular connector is designed to terminate round solid or stranded, 28 – 26 AWG, Cat6A/7 network cable. The connector contains 3-Prong contacts that hold the wire in place giving a reliable connection. This connector meets and exceeds 10Gig performance standard.

Cable Jacket Outer Diameter Size Range: 0.224” – 0.335” (5.7mm – 8.5mm)
Insulation Diameter (Conductor) Size Range: 0.037” – 0.041” (0.94mm – 1.05mm)
Compatible with CAT7, CAT6A, CAT6E, and CAT6
Meets ANSI/EIA/TIA/TAA specifications
Round Solid and Stranded, 28–26 AWG
Shielded Connector, External Ground
3-Prong, 50 micron Gold plated Contacts
3 Piece with Liner and Spacer Bar
Meets 10Gig Performance Standard
UL and RoHS/FCC compliant
Color: Clear/Transparent
