SIN-10

SERIAL INTERFACE ADAPTER - AMS SIN-10 TERM-2 SIN-10 / SIN-11 OVERVIEW
With the complexity of today’s computer
operating systems, and the security built
into the operating systems shell, it is
becoming increasingly difficult for
programmers to perform the direct
interface with hardware such as UARTS,
i.e., Windows NT.
TERM-2
BLC-51
The SIN-10 and SIN-11 solve this
problem by making it simple to send one,
or a block of commands using the I/O
built into any software that is capable of
output to a COM port. With these device
there is no need for special echoed
character handshake software.
SIN-10 BLOCK DIAGRAM
SIN-10 BLOCK DIAGRAM
RS232 DATA LEDS PARTY DATA LEDS

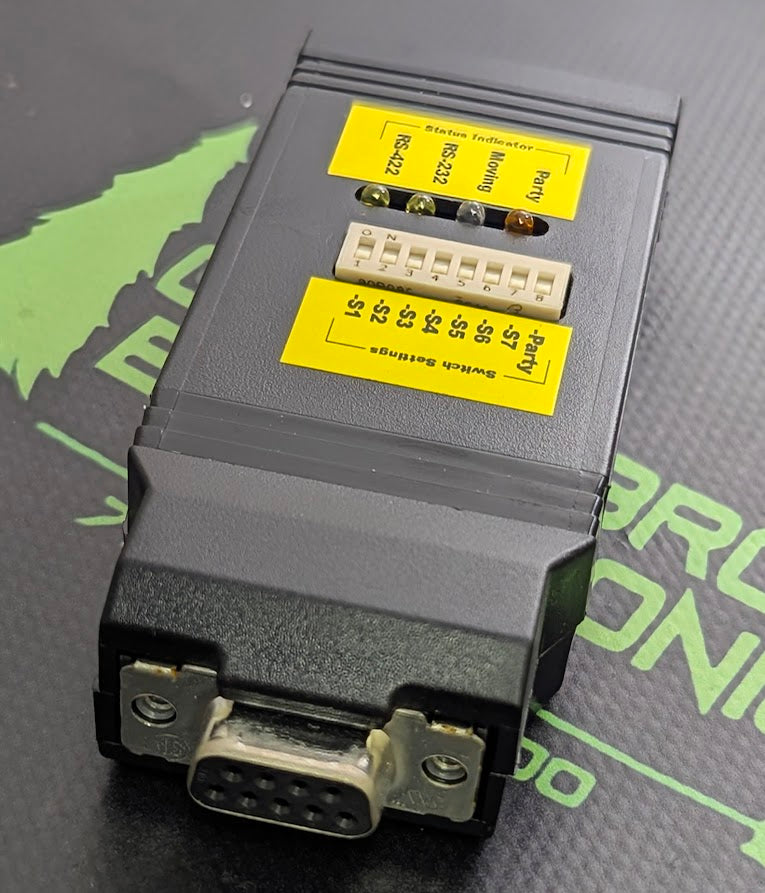

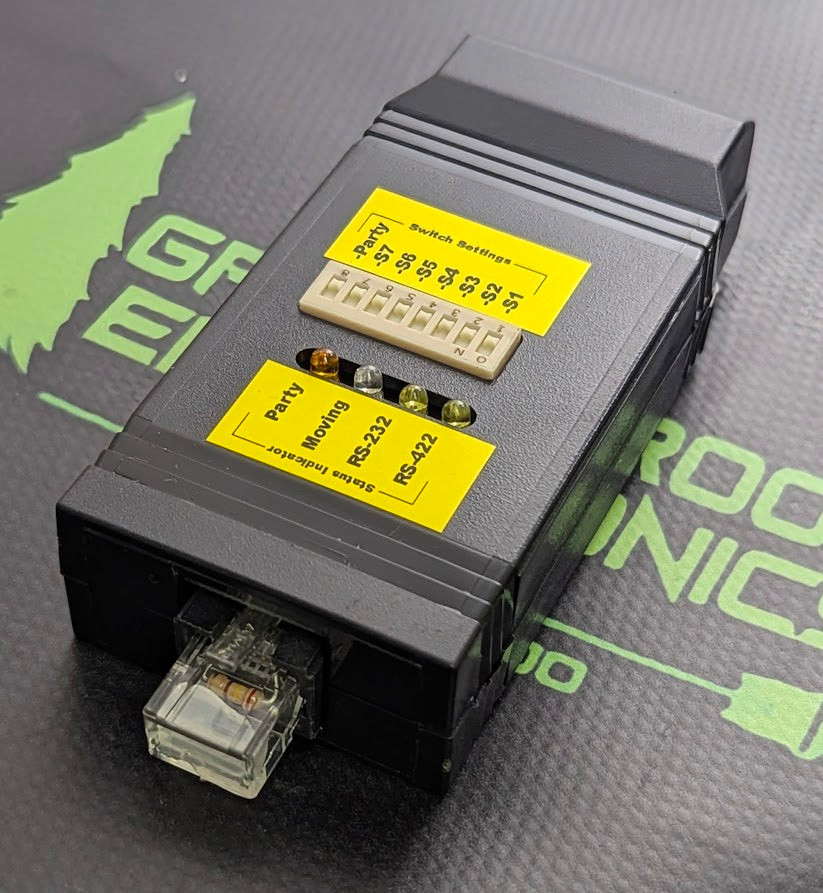

The SIN-10 and SIN-11 are intelligent
serial line converters that simplify
application software development and
improves overall performance.
The SIN-10 operates at 9600, 38.4k or
the special 470k baud speeds. The lower
cost SIN-11 operates at 9600 baud only.
The integral microprocessor buffers
command strings of 250 characters. A
second 250 character buffer receives data
through a “Party Line” serial communica-
tions protocol.
