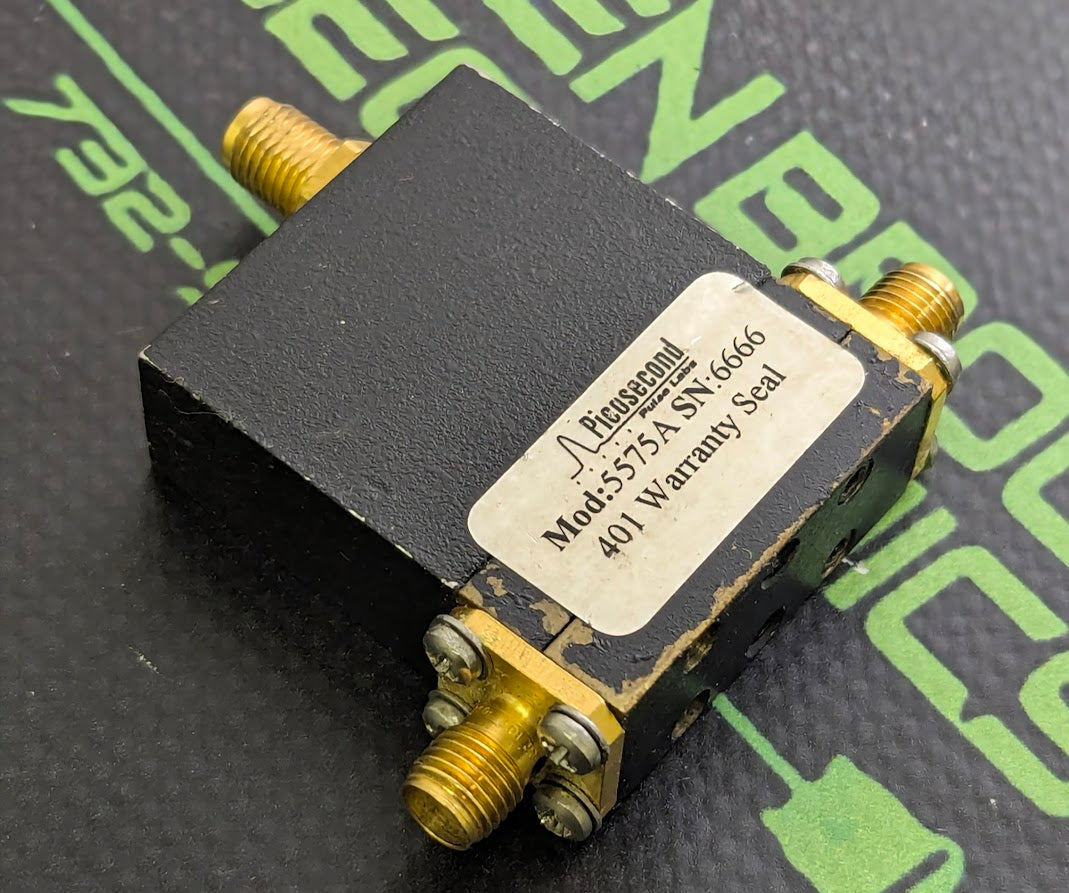

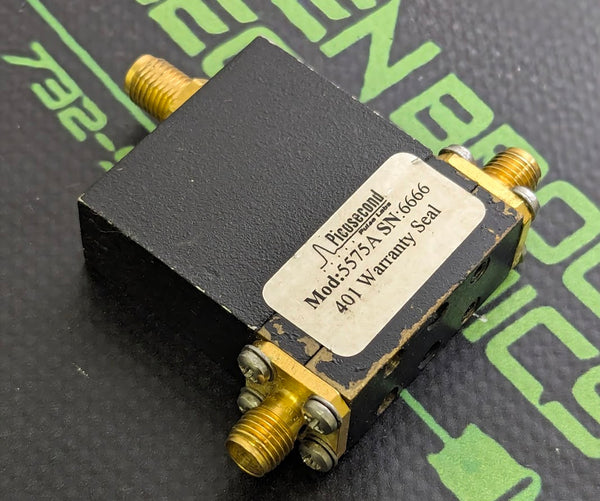

5575A

SMA BIAS TEE - The Model 5575A is a broadband coaxial bias insertion tee and
DC blocking capacitor designed to pass fast rise pulses with
minimum waveform distortion. The risetime is 30 ps with a -3
dB bandwidth extending from 10 kHz to 12 GHz. The 5575A
will safely carry 500 mA of DC current. However, core
saturation limits the low frequency response at DC currents
above 20 mA.
